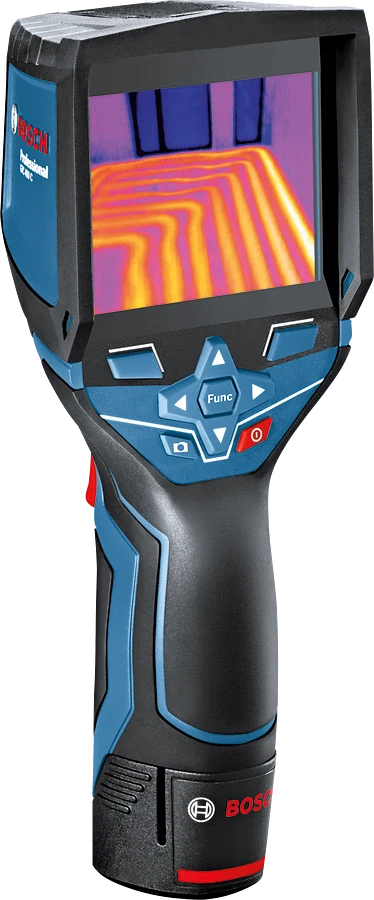

Bosch GTC 400 C Thermo cameras & detectors

Name: Thermo cameras & detectors
Brand: Bosch
SKU: 0601083150

Bosch · Model GTC 400 C

GTC 400 C

Request a quotation

Bosch Thermo cameras & detectors

PRO GTC 400 C Thermo cameras & detectors | Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app, Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement, Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Official model: GTC 400 C
Manufacturer SKU: 0601083150

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

OEM order number	0601083150
GTIN	3165140913539
Battery voltage	12.0 V
Measurement range	-10 °C to +400 °C
Measuring accuracy of IR	± 3.0 °C
Measuring application	Thermal image
Data transfer	Wi-Fi, MicroUSB
Thermal sensitivity (NETD)	<=50 mK
Resolution	0.1 °C
Size of IR sensor	160 Pixel x 120 Pixel
Number of measuring points	19,200
Power supply and runtime	4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Frame buffer (number of images)	500
Memory type	internal memory
File format of image	.jpg
Dust and splash protection	IP53
Weight	0.54 kg
Size of display	3.5"
Operating temperature	-10 – 45 °C
Storage temperature	-20 – 70 °C
Focus distance, minimum	0.3 m
Tool dimensions (L x W x H)	95 x 233 x 63 mm
Net weight	0.495 kg
Gross weight	1.177 kg
Field of view (FOV)	53° x 43°

Key features

Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app, Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement, Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
