Fischer FBN II 12/10 Bolt anchor FBN II

Name: Bolt anchor FBN II
Brand: Fischer
SKU: 560933

Fischer · Model FBN II 12/10

FBN II 12/10

Request a quotation

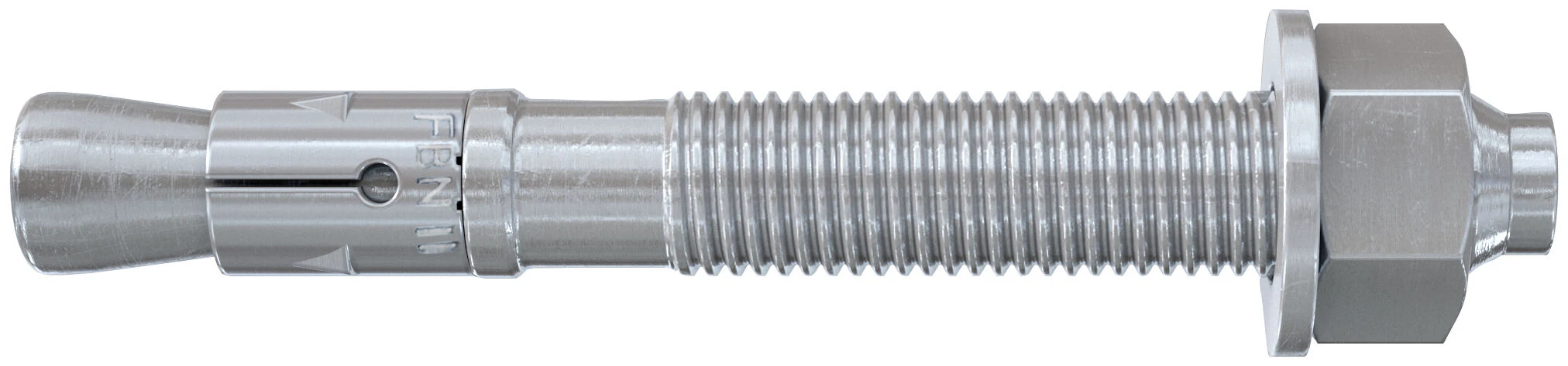

Fischer Bolt anchor FBN II

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixations in non-cracked concrete. Thanks to its long thread and the two anchorage depths, the fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation. In the stainless steel design, the bolt anchor is suitable for façade sub-structures, cantilevers and ladders outside.

Official model: FBN II 12/10
Manufacturer SKU: 560933

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

OEM article number	560933
ETA-approval	relevant
Drill diameter	12 mm
Min. drill hole depth for through fixings	95 mm
Anchor length	104 mm
Max. usable length h<sub>ef,stand.</sub>/h<sub>ef,min.</sub>	10 / 25 mm
Thread	M12 x 59 mm
Width across nut	19 mm
Amount	20 pcs
GTIN (EAN-Code)	4048962430592
