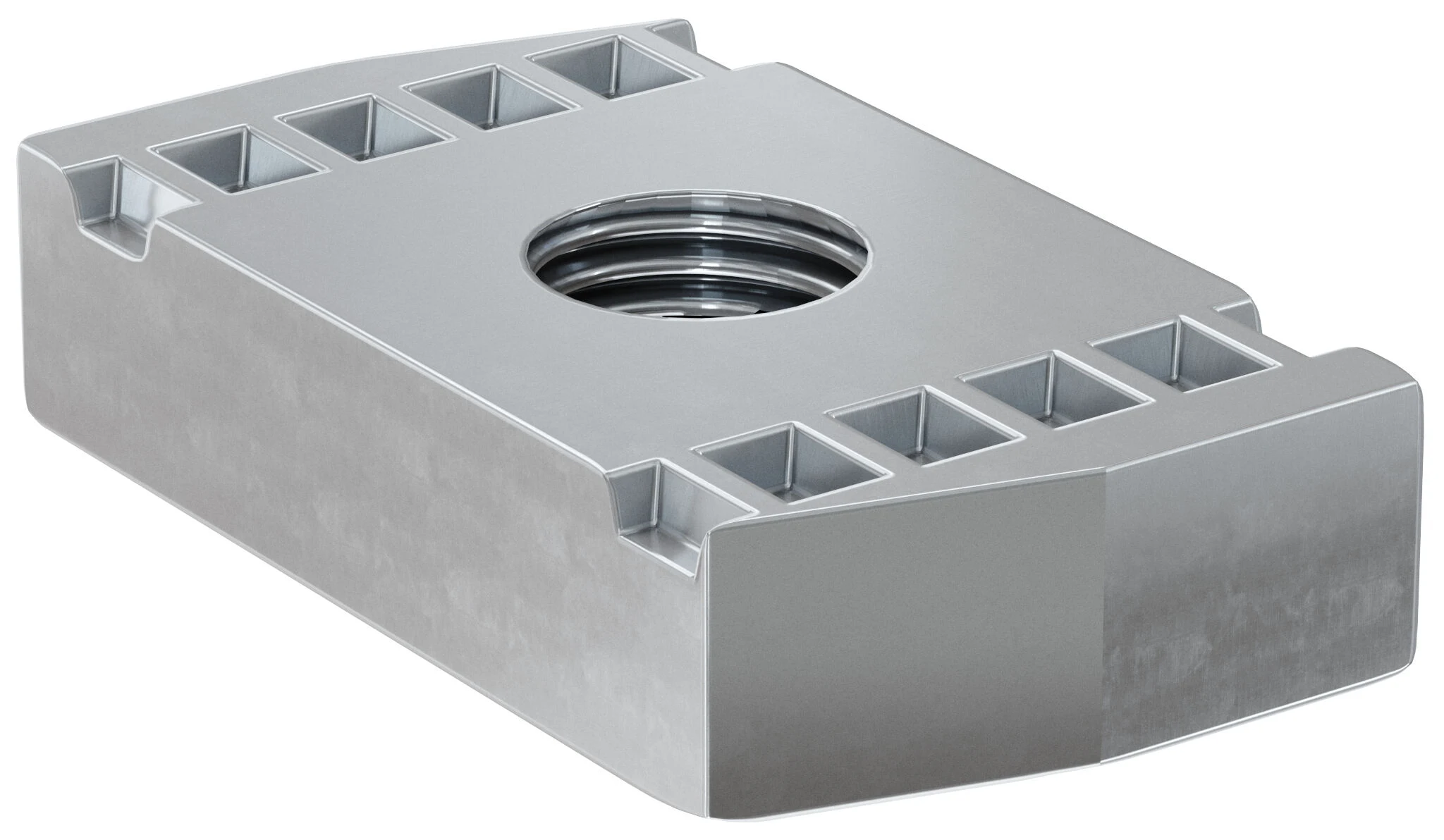

Fischer FCN 10 Channel nut FCN

Name: Channel nut FCN
Brand: Fischer
SKU: 077409

Fischer · Model FCN 10

FCN 10

Request a quotation

Fischer Channel nut FCN

The fischer channel nut FCN is a connector for securing various attachment parts in the fischer mounting channel profiles FUS. The defined serration of the channel nut provides a secure hold in the channel. fischer offers the FCN in the sizes M6, M8, M10, M12 and M16. The galvanised zinc design is suitable for installations in buildings and the hot-dip galvanised and stainless steel designs are suitable for installations outside and in highly corrosive environments.

Official model: FCN 10
Manufacturer SKU: 077409

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

OEM article number	077409
Thread	M10
Thickness	8 mm
Max. recommended tension load for FUS 1,5 mm	4 kN
Max. recommended tension load for FUS 2,0 mm	5 kN
Max. recommended tension load for FUS 2,5 mm	8 kN
Max. recommended shear load for FUS 1,5 mm	2 kN
Max. recommended shear load for FUS 2,0 mm	2,5 kN
Max. recommended shear load for FUS 2,5 mm	2,5 kN
Tightening torque for screw grade ≥ 8.8	40 Nm
Packaging	Folding box
Amount	100 pcs
GTIN (EAN-Code)	4006209774090

Applications

Applications Simple hammer-head nut for installation in FUS channels The FCN is suitable for the connection of different fixtures and pipe clamps with the channel. FCN: for use in dry interior areas. FCN hdg: for indoor and outdoor application. FCN A4: for indoor and outdoor applications and in environments with high stress to components due to corrosion.
