Fischer PUWS 2 x 2 Universal angle PUWS

Name: Universal angle PUWS
Brand: Fischer
SKU: 533733

Fischer · Model PUWS 2 x 2

PUWS 2 x 2

Request a quotation

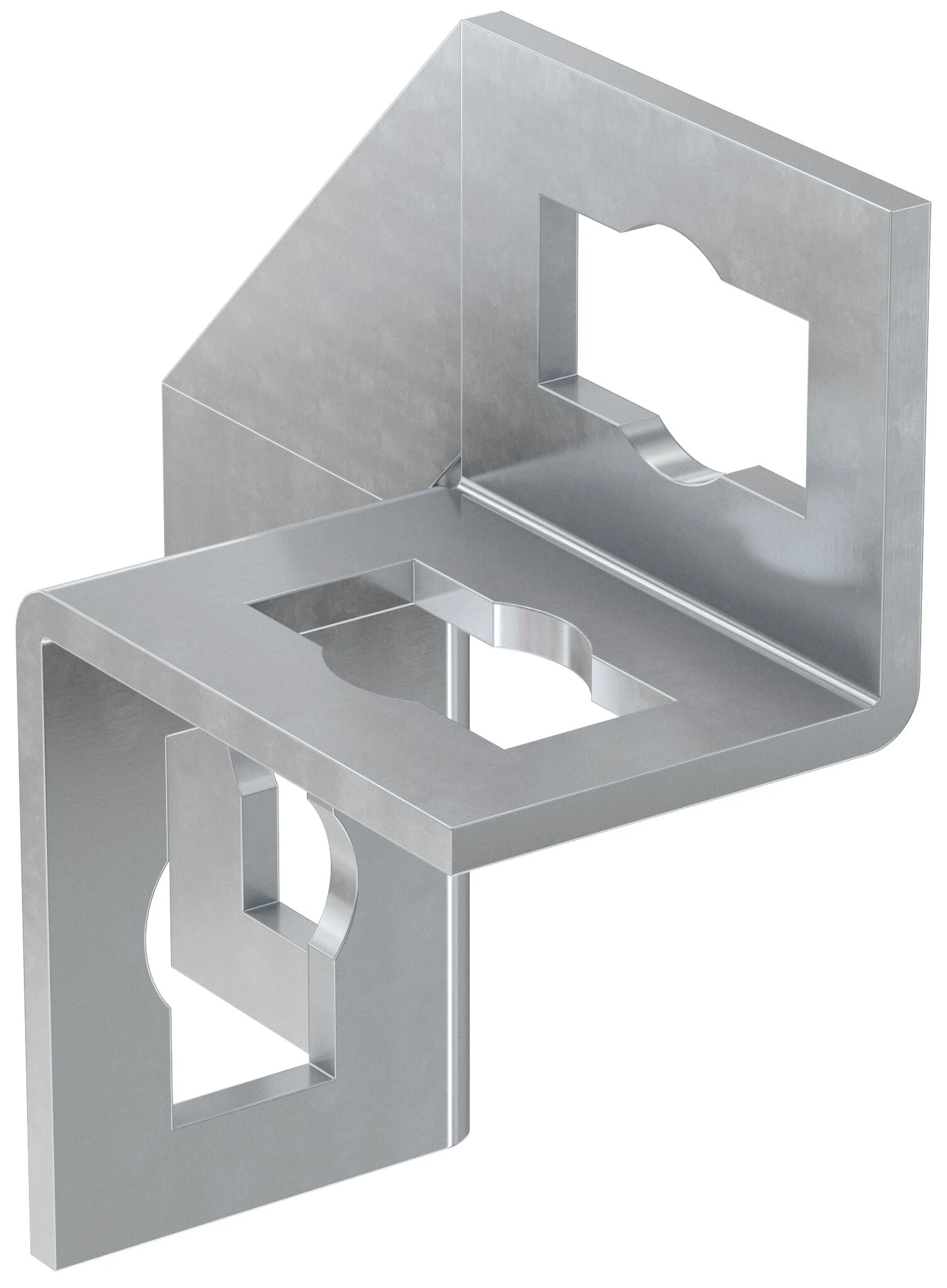

Fischer Universal angle PUWS

The fischer universal angle PUWS is ideal for universal angle connections of the fischer mounting channels FUS with the fischer push-through connector PFCN. The formed holes in the universal angles enable easy connection with the push-though connector. The universal angle is a two-sided construction element that abuts the profiles, thus offering high stability and safety. fischer offers the universalangle as a four-hole and eight-hole variant with 90° and a four-hole variant with 45°. The electro zinc-plated design is suitable for installations in buildings, the hot-dip galvanised or zinc lamella coating and stainless steel designs are suitable for installations outside and in highly corrosive environments.

Official model: PUWS 2 x 2
Manufacturer SKU: 533733

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

OEM article number	533733
For profile	all FUS channels
Max. recommended tension load for FUS 2,0 mm	5 kN
Max. recommended tension load for FUS 2,5 mm	7 kN
Max. recommended shear load	3,5 kN
Tightening torque for screw grade ≥ 8.8	40 Nm
Packaging	Folding box
Amount	10 pcs
GTIN (EAN-Code)	4048962224986

Applications

Applications Reinforcement of supporting structures for the push-through system. PUWS: for use in dry interior areas. PUWS zl: for indoor and outdoor applications. PUWS A4: for indoor and outdoor applications and in environments with high stress to components due to corrosion.
