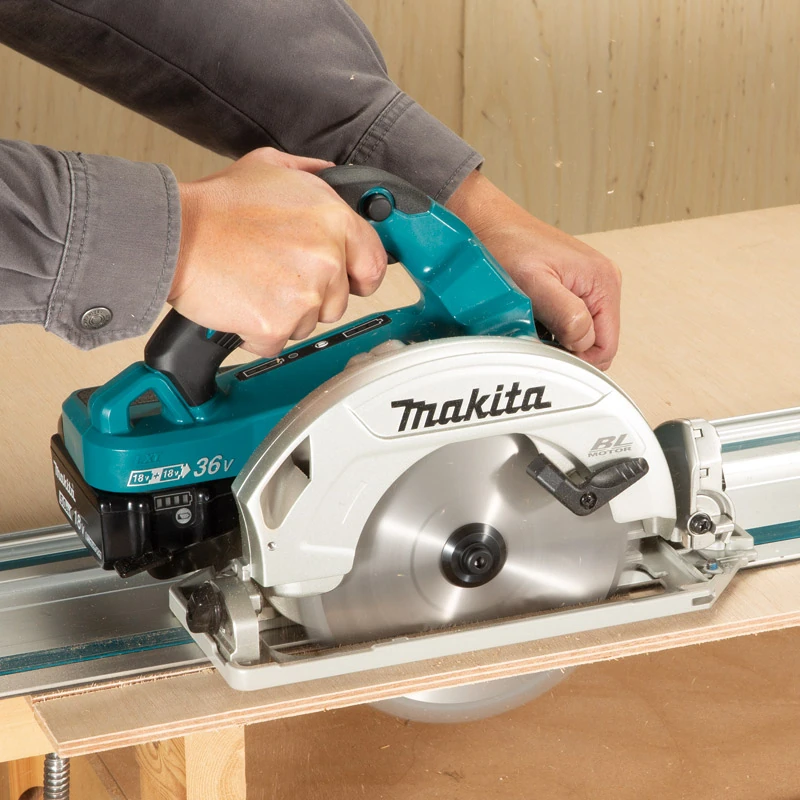

Makita DHS783 Cordless Circular Saw

Name: Cordless Circular Saw
Brand: Makita

Makita · Model DHS783

DHS783

Request a quotation

Makita Cordless Circular Saw

Makita DHS783 is listed in the manufacturer's cordless circular saw range. OEM technical data: Blade Diameter: 190 / 185 mm (7-1/2″ / 7-1/4″); Hole Diameter: 15.88 / 20 / 30 mm (5/8″ / 13/16″ / 1-3/16″).

Official model: DHS783

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Circular Saw
Blade Diameter	190 / 185 mm (7-1/2″ / 7-1/4″)
Hole Diameter	15.88 / 20 / 30 mm (5/8″ / 13/16″ / 1-3/16″)
Max Cutting Capacity	90°: 62.5 / 60 mm (2-7/16″ / 2-3/8″) 45°: 44.5 / 43 mm (1-3/4″ / 1-11/16″) 48°: 42 / 41 mm (1-5/8″ / 1-5/8″)
No Load Speed (RPM)	6,000
Max Output	1,800 W
Vibration Level	Cutting Wood: 2.5 m/s² or less
Vibration K Factor	Cutting Wood: 1.5 m/s²
Vibration Level	Cutting Metal: 2.5 m/s² or less
Vibration K Factor	Cutting Metal: 1.5 m/s²
Sound Pressure Level	93 dB(A)
Sound Power Level	104 dB(A)
Noise K Factor	3 dB(A)
Dimensions (L x W x H)	348x210x290 mm (13-3/4″x8-1/4″x11-3/8″)
Net weight	4.5 – 5.1 kg (9.9 – 11.3 lbs.

Key features

Blade Diameter: 190 / 185 mm (7-1/2″ / 7-1/4″)
Hole Diameter: 15.88 / 20 / 30 mm (5/8″ / 13/16″ / 1-3/16″)
Max Cutting Capacity: 90°: 62.5 / 60 mm (2-7/16″ / 2-3/8″) 45°: 44.5 / 43 mm (1-3/4″ / 1-11/16″) 48°: 42 / 41 mm (1-5/8″ / 1-5/8″)
No Load Speed (RPM): 6,000
Max Output: 1,800 W
