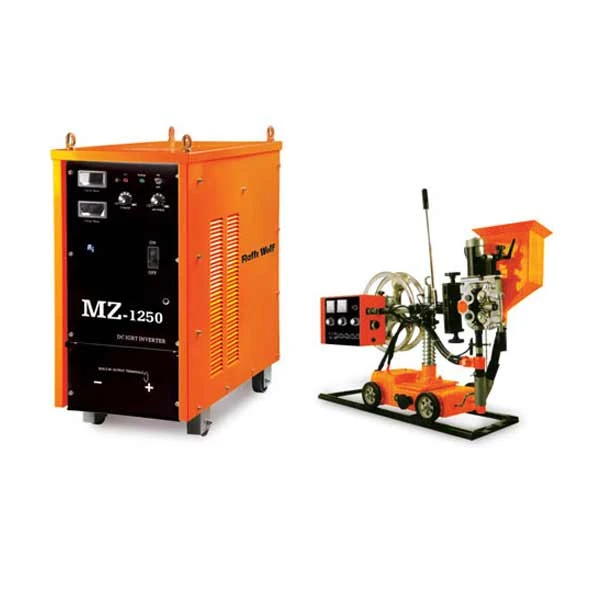

Ralliwolf Submerge Arc Welding MZ1000 / MZ1250

Name: Submerge Arc Welding MZ1000 / MZ1250
Brand: Ralliwolf

Ralliwolf · Model MZ1000 / MZ1250

MZ1000 / MZ1250

Request a quotation

Ralliwolf Submerge Arc Welding MZ1000 / MZ1250

Submerge Arc Welding MZ1000 / MZ1250. Manufacturer-referenced industrial supply enquiry with individual specifications and the official product resource.

Official model: MZ1000 / MZ1250

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

PRODUCTS TYPE	MZ1000 , MZ1250
Model	RS 100, RS 125
Input Voltage (V)	AC 415 ± 15% , AC 415 ± 15%
Frequency (HZ)	50 / 60 , 50 / 60
Rated Input Current (A)	77.1 , 90
Power (KVA)	55.5 , 64.5
No-load Voltage (V)	72 , 80
Output Current Range (A)	112 – 1000 , 112 – 1250
Rated Output Voltage (V)	44 , 44
Duty Cycle (%)	60 , 60
No-load Loss (W)	300 , 300
Efficiency (%)	85 , 85
Power Factor	0.93 , 0.93
Insulation Grade	F , F
Housing Protection Grade	IP21 , IP21
Arc Force Current Range (A)	0 – 100 , 0 – 100
Net Weight (Kg)	85 , 98

Key features

RALLIWOLF RS100 & RS125 SAW welders are ruggedly built, high performance machines which can take welding productivity & economy to new heights.
The machine is widely used in welding of heavy duty structures like girder, I-beams, railway under carriage, pressure vessels etc.
The multipurpose power source is suitable for SAW, MMA & Carbon Gouging application.
The Tractor and Welding Head comes with Mechanical clutch for manual movement.
Head swivel & tilting facility.
Suitable horizontal and vertical slides.
4 roll drive wire feed motor for smooth and jerk free wire feeding.
Adequate capacity of flux hopper (10kgs) ensures uninterrupted long weld seams
