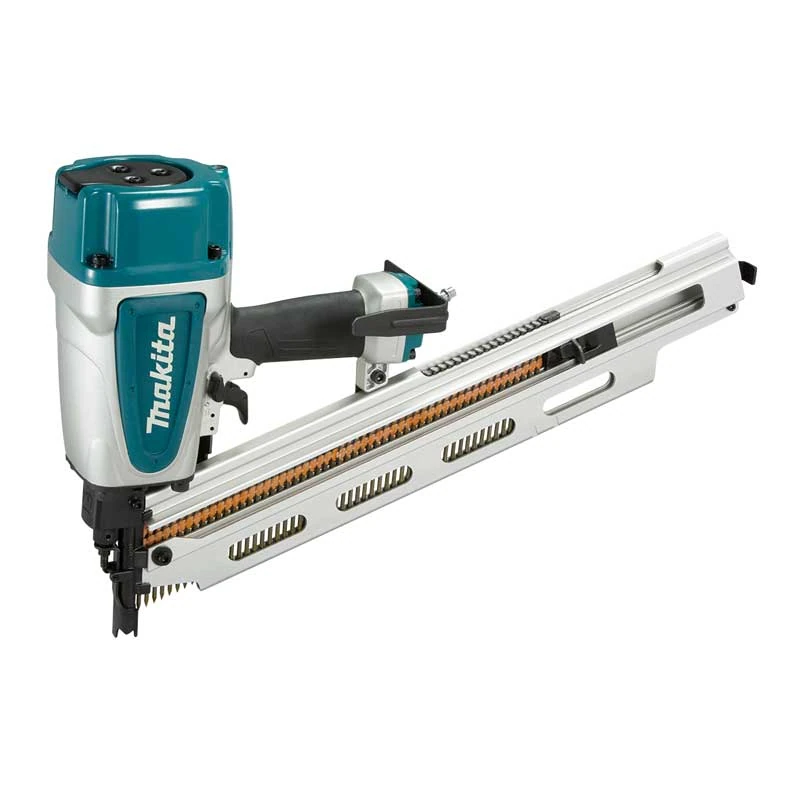

Makita AN924 Pneumatic Framing Nailer

Name: Pneumatic Framing Nailer
Brand: Makita

Makita · Model AN924

AN924

Request a quotation

Makita Pneumatic Framing Nailer

Makita AN924 is listed in the manufacturer's pneumatic framing nailer range. OEM technical data: Capacity: Length: 50 – 90 mm (2 – 3-1/2″) Dia.: 2.9 – 3.76 mm (0.113 – 0.148″) Angle: 21°; Operating pressure: 0.49 – 0.83 MPa (70 – 120 PSI).

Official model: AN924

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Pneumatic Framing Nailer
Capacity	Length: 50 – 90 mm (2 – 3-1/2″) Dia.: 2.9 – 3.76 mm (0.113 – 0.148″) Angle: 21°
Operating pressure	0.49 – 0.83 MPa (70 – 120 PSI)
Magazine capacity	64 – 73
Driving stroke	126 mm (5″)
Cylinder bore diameter	57 mm (2-1/4″)
Sound pressure level	N/A dB(A)
Sound power level	N/A dB(A)
Noise K factor	N/A dB(A)
Vibration level	N/A m/s²
Vibration K factor	N/A m/s²
Dimensions (L x W x H)	560 x 117 x 348 mm (22 x 4-5/8 x 13-3/4″)
Net weight	3.8 kg (8.3 lbs.)

Key features

Capacity: Length: 50 – 90 mm (2 – 3-1/2″) Dia.: 2.9 – 3.76 mm (0.113 – 0.148″) Angle: 21°
Operating pressure: 0.49 – 0.83 MPa (70 – 120 PSI)
Magazine capacity: 64 – 73
Driving stroke: 126 mm (5″)
Cylinder bore diameter: 57 mm (2-1/4″)
