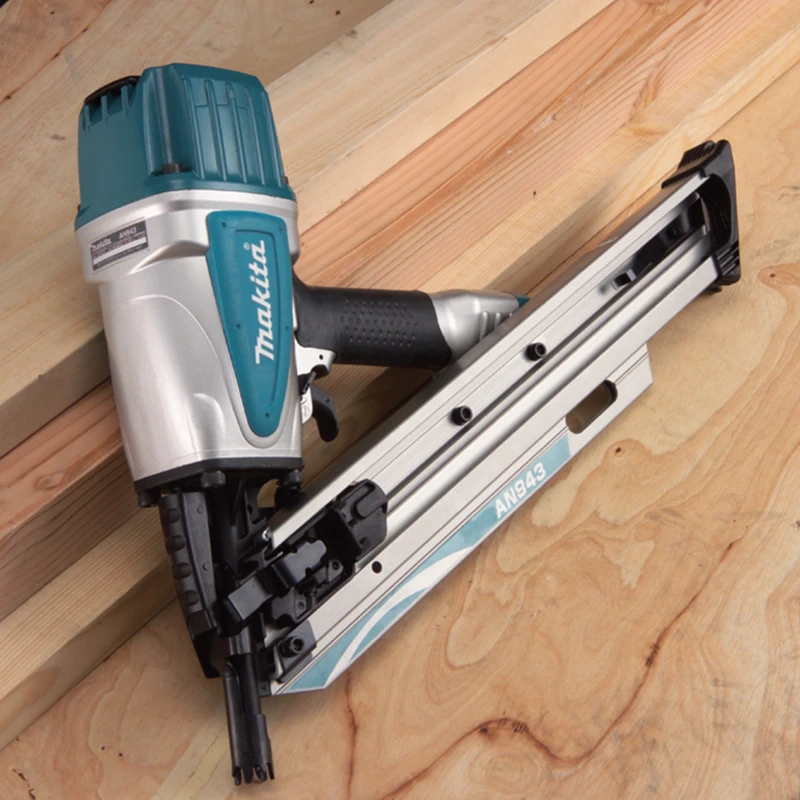

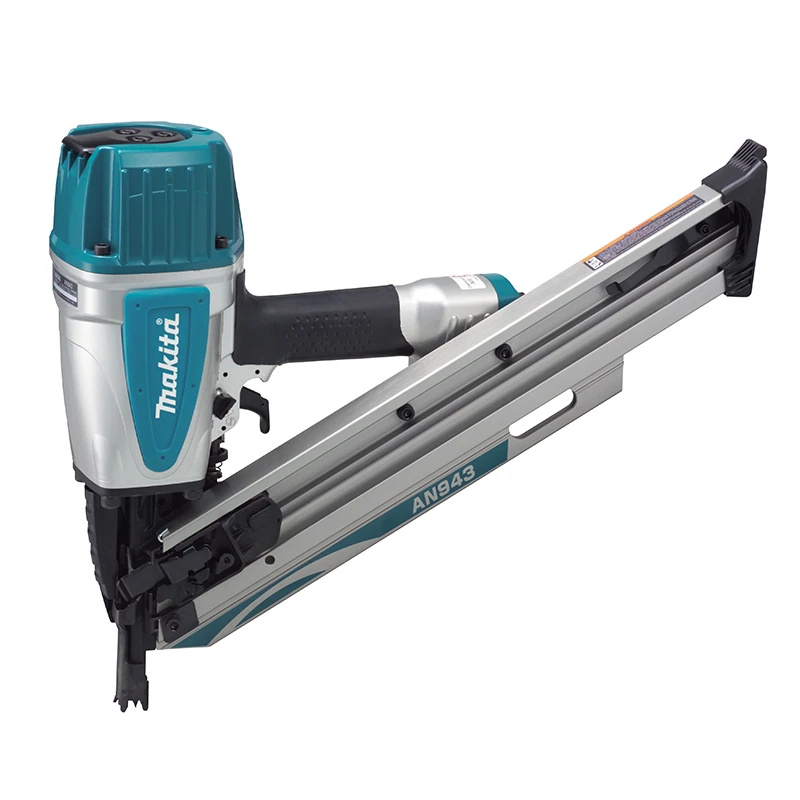

Makita AN943 Pneumatic Framing Nailer

Name: Pneumatic Framing Nailer
Brand: Makita

Makita · Model AN943

AN943

Request a quotation

Makita Pneumatic Framing Nailer

Makita AN943 is listed in the manufacturer's pneumatic framing nailer range. OEM technical data: Nail capacity: 50 – 90 mm (2 – 3-1/2″); Operating pressure: 0.44 – 0.83 MPa (65 – 120 PSI).

Official model: AN943

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Pneumatic Framing Nailer
Nail capacity	50 – 90 mm (2 – 3-1/2″)
Operating pressure	0.44 – 0.83 MPa (65 – 120 PSI)
Magazine capacity	60 – 84
Driving stroke	126 mm (5″)
Dimensions (L x W x H)	455 x 109 x 365 mm (17-7/8 x 4-1/4 x 14-3/8″)
Net weight	4 kg

Key features

Nail capacity: 50 – 90 mm (2 – 3-1/2″)
Operating pressure: 0.44 – 0.83 MPa (65 – 120 PSI)
Magazine capacity: 60 – 84
Driving stroke: 126 mm (5″)
Dimensions (L x W x H): 455 x 109 x 365 mm (17-7/8 x 4-1/4 x 14-3/8″)
