Makita

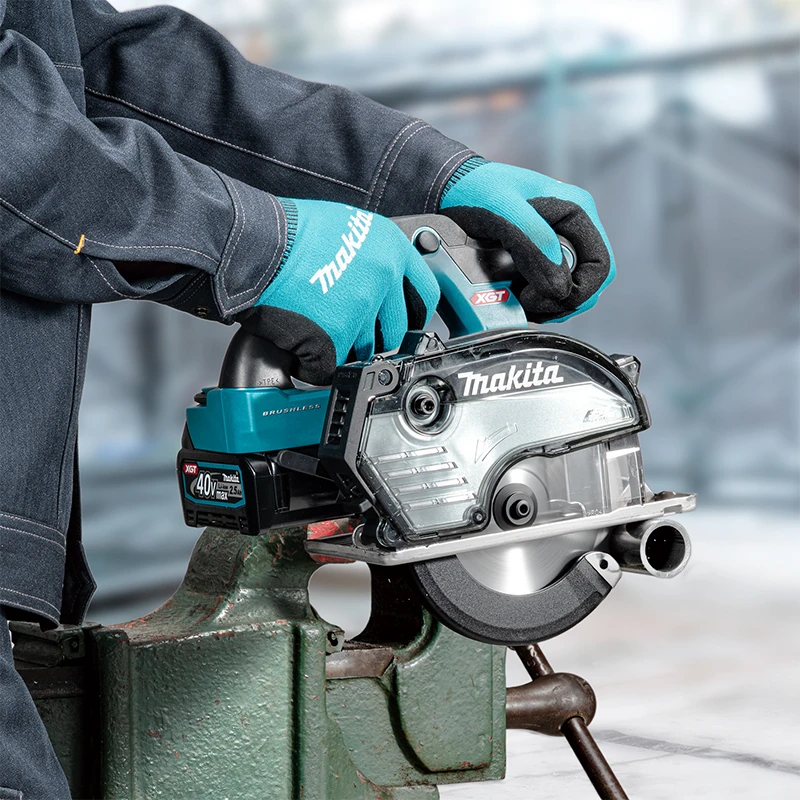

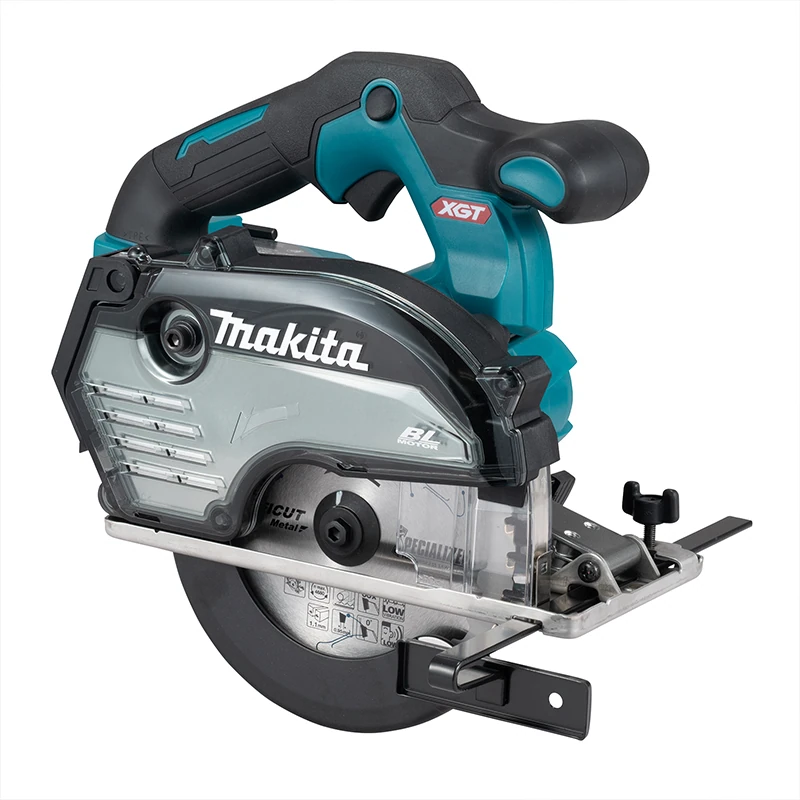

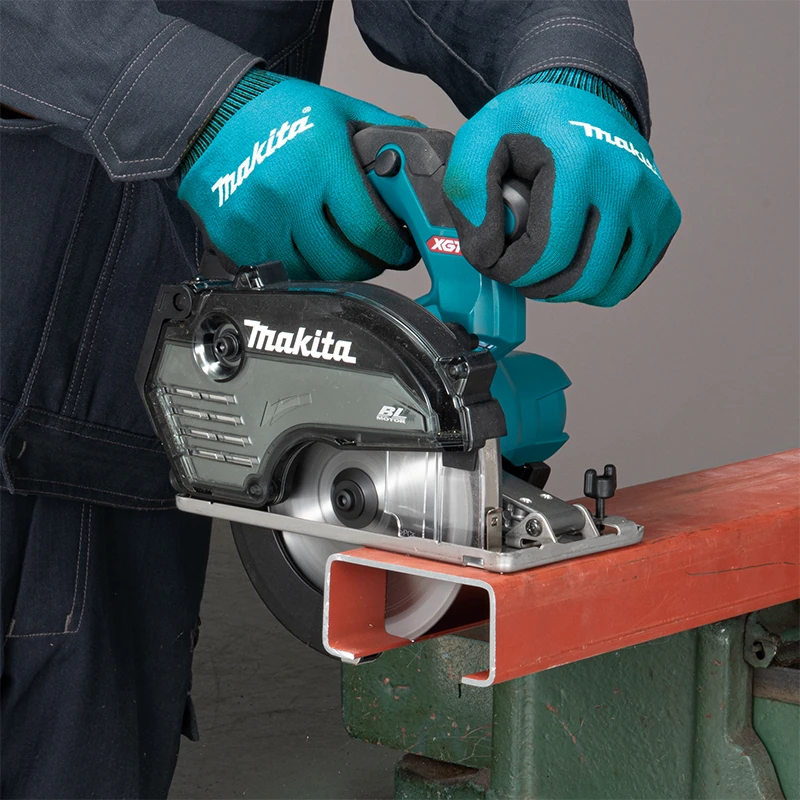

Makita CS004G Cordless Metal Cutter
Makita · Model CS004G
CS004GRequest a quotation
Makita Cordless Metal Cutter
Makita CS004G is listed in the manufacturer's cordless metal cutter range. OEM technical data: Saw blade: Type: TCT saw blade / 32T; Wheel diameter: 136 – 150 mm (5-3/8 – 5-7/8″).
- Official model
- CS004G
Pricing, model selection, stock and delivery are confirmed in your quotation.
Technical information
| Product type | Cordless Metal Cutter |
|---|---|
| Saw blade | Type: TCT saw blade / 32T |
| Wheel diameter | 136 – 150 mm (5-3/8 – 5-7/8″) |
| Hole diameter | 15.88 / 20 mm (5/8 / 13/16″) 20 mm |
| No load speed | 4,200 minˉ¹ |
| Max Cutting Capacity | 57.5 mm (2-1/4″) |
| Max cutting capacity at 0° (Vise stand) | Round Pipe: 56 mm (2-3/16″) Square Pipe (L x W): 50 x 50 mm (2 x 2″) |
| Max cutting capacity at 45° (Vise stand) | Round Pipe: 40 mm (1-9/16″) Square Pipe (L x W): 40 x 50 mm (1-9/16 x 2″) |
| Vise angle range | 0 – Right: 45 ° |
| Vise stand compatibility | Yes |
| Vise stand compatibility (Other conditions) | The vise stand is available only in destinations where international safety standards do not apply. |
| Base material | Stainless steel |
| Cutting materials other than metal | Yes (The optional dust cap for dust collection needs to be installed.) |
| Vibration level | 1.6 m/s² (EN62841-2-5, Mode: Cutting metal), 0.9 m/s² (EN62841-2-5, Mode: Cutting wood) |
| Uncertainty (K) for Vibration | 1.5 m/s² (EN62841-2-5, Mode: Cutting metal), 1.5 m/s² (EN62841-2-5, Mode: Cutting wood) |
| Sound pressure level | 104 dB(A) (EN62841-2-5, Mode: Cutting metal), 93 dB(A) (EN62841-2-5, Mode: Cutting wood) |
| Sound power level | 112 dB(A) (EN62841-2-5, Mode: Cutting metal), 101 dB(A) (EN62841-2-5, Mode: Cutting wood) |
| Uncertainty (K) for Noise | 3 dB(A) (EN62841-2-5, Mode: Cutting metal), 3 dB(A) (EN62841-2-5, Mode: Cutting wood) |
| Dimensions (L x W x H) | 267 x 180 x 256 mm (10-1/2 x 7-1/8 x 10-1/8″) |
| Dimensions (Battery) | BL4025 |
| Net weight | 3 kg |
| Net weight (Battery) | BL4025 |
Key features
Saw blade: Type: TCT saw blade / 32T
Wheel diameter: 136 – 150 mm (5-3/8 – 5-7/8″)
Hole diameter : 15.88 / 20 mm (5/8 / 13/16″) 20 mm
No load speed: 4,200 minˉ¹
Max Cutting Capacity : 57.5 mm (2-1/4″)
Manufacturer reference
View official product informationCatalogues & documents
Manufacturer document reference OEM websiteMakita CS004G · parts diagramMakita CS004G · instruction manualMakita CS004G · product leafletHow do I request a quotation?
Select a quantity, add this listing to your quotation list, then send your company, location and technical requirements through the RFQ form.
How is availability confirmed?
The model shown identifies the manufacturer product. Stock, variant, pricing and delivery are confirmed in the quotation.
