Makita DJV186 Cordless Jig Saw

Name: Cordless Jig Saw
Brand: Makita

Makita · Model DJV186

DJV186

Request a quotation

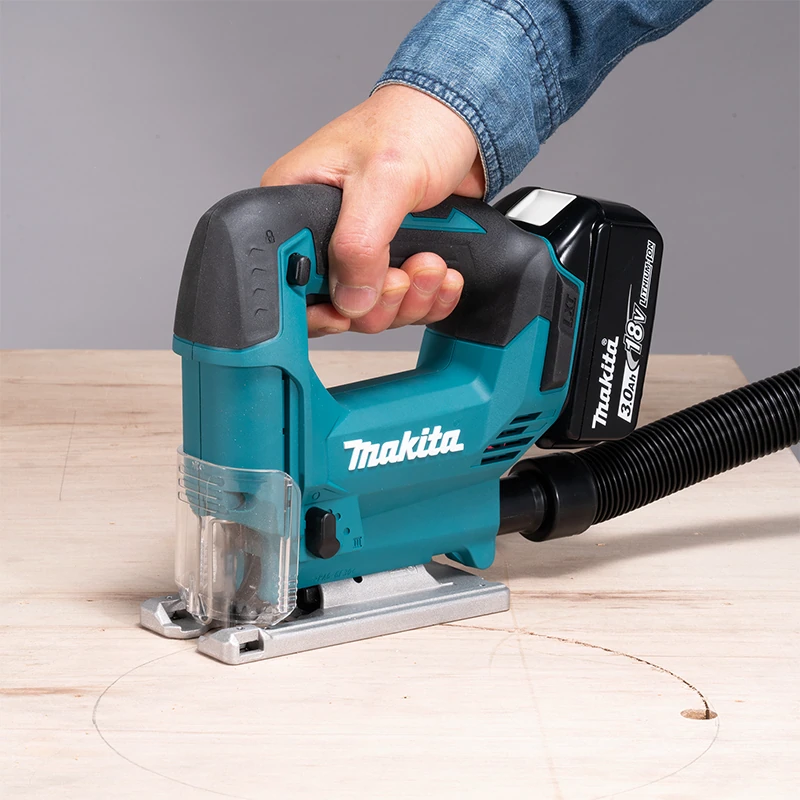

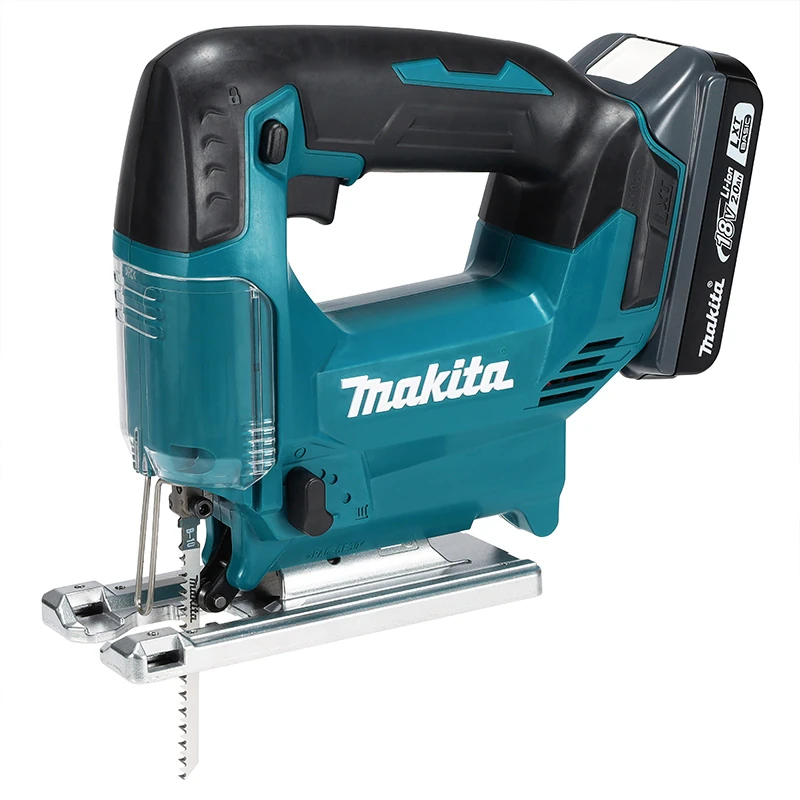

Makita Cordless Jig Saw

Makita DJV186 is listed in the manufacturer's cordless jig saw range. OEM technical data: Stroke length: 18 mm (11/16″); Strokes per minute: 0 – 2,900 minˉ¹.

Official model: DJV186

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Jig Saw
Stroke length	18 mm (11/16″)
Strokes per minute	0 – 2,900 minˉ¹
Capacity	Wood: 65 mm (2-9/16″) Mild steel: 6 mm (1/4″) Aluminum: 10 mm (3/8″)
Handle type	Top handle
Bevel range	0 – 45 °
Base plate material	Upper structure: Aluminum diecast Lower structure: Steel
Vibration level (EN62841-2-11)	Cutting boards: 7.5 m/s² Cutting sheet metal: 4.2 m/s²
Vibration K factor (EN62841-2-11)	Cutting boards: 1.5 m/s² Cutting sheet metal: 1.5 m/s²
Sound pressure level (EN62841-2-11)	85 dB(A)
Sound power level (EN62841-2-11)	93 dB(A)
Noise K factor (EN62841-2-11)	3 dB(A)
Dimensions (L x W x H)	241 – 257 x 81 x 196 mm (9-1/2 – 10-1/8 x 3-3/16 x 7-3/4″)
Dimensions (Battery)	BLB182 – BL1860B
Net weight	1.9 – 2.2 kg
Net weight (Battery)	BL1815N – BL1860B

Key features

Stroke length: 18 mm (11/16″)
Strokes per minute: 0 – 2,900 minˉ¹
Capacity: Wood: 65 mm (2-9/16″) Mild steel: 6 mm (1/4″) Aluminum: 10 mm (3/8″)
Handle type: Top handle
Bevel range: 0 – 45 °
