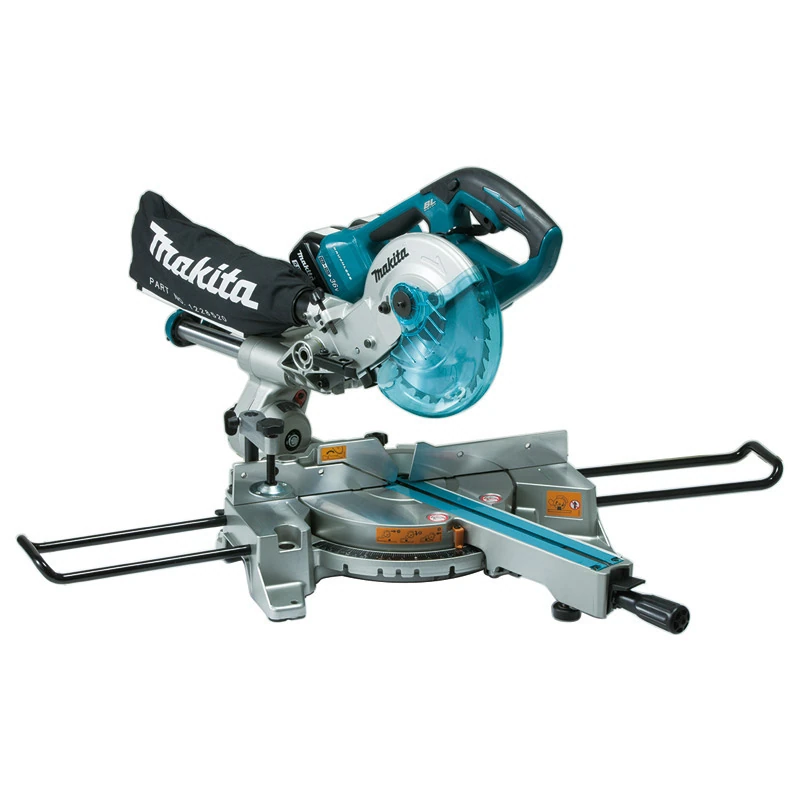

Makita DLS714 Cordless Slide Compound Miter Saw

Name: Cordless Slide Compound Miter Saw
Brand: Makita

Makita · Model DLS714

DLS714

Request a quotation

Makita Cordless Slide Compound Miter Saw

Makita DLS714 is listed in the manufacturer's cordless slide compound miter saw range. OEM technical data: Blade Diameter: 190 mm (7-1/2″); Miter Angle: 47° L / 57° R.

Official model: DLS714

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Slide Compound Miter Saw
Blade Diameter	190 mm (7-1/2″)
Miter Angle	47° L / 57° R
Bevel Angle	45° L / 5° R
Max Cutting Capacity	90°: 52 x 300 mm (2-1/16″ x 11-3/4″) at 45° left: 40×300 mm (1-9/16″x11-3/4″) at 5° right: 40×300 mm (1-9/16″x11-3/4″)
No Load Speed (RPM)	5,700
Sound Pressure Level	88 dB(A)
Sound Power Level	97 dB(A)
Noise K Factor	3 dB(A)
Vibration Level	2.5 m/s² or less
Vibration K Factor	1.5 m/s²
Dimensions (L x W x H)	655x430x445 mm (25-3/4″x17″x17-1/2″)
Net weight	12.6 kg (27.8 lbs.)

Key features

Blade Diameter: 190 mm (7-1/2″)
Miter Angle: 47° L / 57° R
Bevel Angle: 45° L / 5° R
Max Cutting Capacity: 90°: 52 x 300 mm (2-1/16″ x 11-3/4″) at 45° left: 40×300 mm (1-9/16″x11-3/4″) at 5° right: 40×300 mm (1-9/16″x11-3/4″)
No Load Speed (RPM): 5,700
