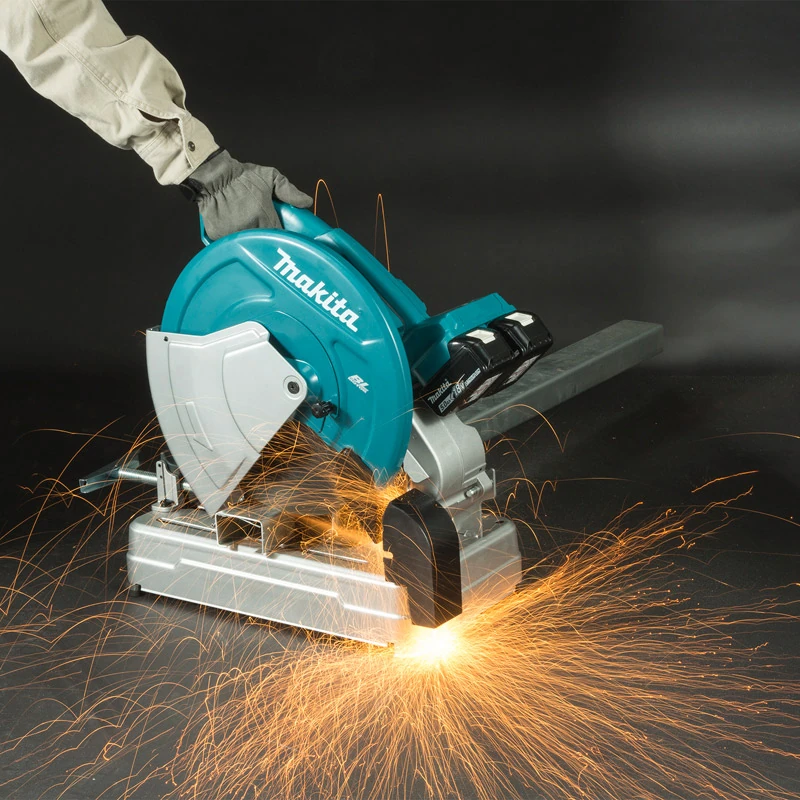

Makita DLW140 Cordless Portable Cut-off

Name: Cordless Portable Cut-off
Brand: Makita

Makita · Model DLW140

DLW140

Request a quotation

Makita Cordless Portable Cut-off

Makita DLW140 is listed in the manufacturer's cordless portable cut-off range. OEM technical data: Wheel Diameter : 355 mm (14″); Hole Diameter: 25.4 mm (1″).

Official model: DLW140

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Portable Cut-off
Wheel Diameter	355 mm (14″)
Hole Diameter	25.4 mm (1″)
Max Wheel Thickness	3 mm (1/8″)
No Load Speed (RPM)	3,800
Capacity at 90°	Round: 127 mm (5″) Rectangular: 115×130 mm (4-1/2″x5-1/8″ Rectangular: 102×194 mm (4″x7-5/8″) Rectangular: 70×233 mm (2-3/4″x9-1/8″) Square: 119×119 mm (4-11/16″x4-11/16″) Triangular: 137×137 mm (5-3/8″x5-3/8″)
Capacity at 45°	Round: 127 mm (5″) Rectangular: 115×103 mm (4-1/2″x4-1/16″) Square: 106×106 mm (4-3/16″x4-3/16″) Triangular: 100×100 mm (4″x4″)
Max Output	1,300 W
Vibration Level	2.5 m/s²
Vibration K Factor	1.5 m/s²
Sound Pressure Level	103 dB(A)
Sound Power Level	115 dB(A)
Noise K Factor	3 dB(A)
Dimensions (L x W x H)	w/ European type safety guard: 537x290x640 mm (21-1/8″x11-3/8″x25-1/4″) w/ Safety guard other than European type: 537x280x640 mm (21-1/8″x11″x25-1/4″) w/ Center cap type safety guard: 537x280x640 mm (21-1/8″x11″x25-1/4″)
Net weight	17.2 – 17.8 kg (37.9 – 39.3 lbs.)

Key features

Wheel Diameter : 355 mm (14″)
Hole Diameter: 25.4 mm (1″)
Max Wheel Thickness: 3 mm (1/8″)
No Load Speed (RPM): 3,800
Capacity at 90°: Round: 127 mm (5″) Rectangular: 115×130 mm (4-1/2″x5-1/8″ Rectangular: 102×194 mm (4″x7-5/8″) Rectangular: 70×233 mm (2-3/4″x9-1/8″) Square: 119×119 mm (4-11/16″x4-11/16″) Triangular: 137×137 mm (5-3/8″x5-3/8″)
