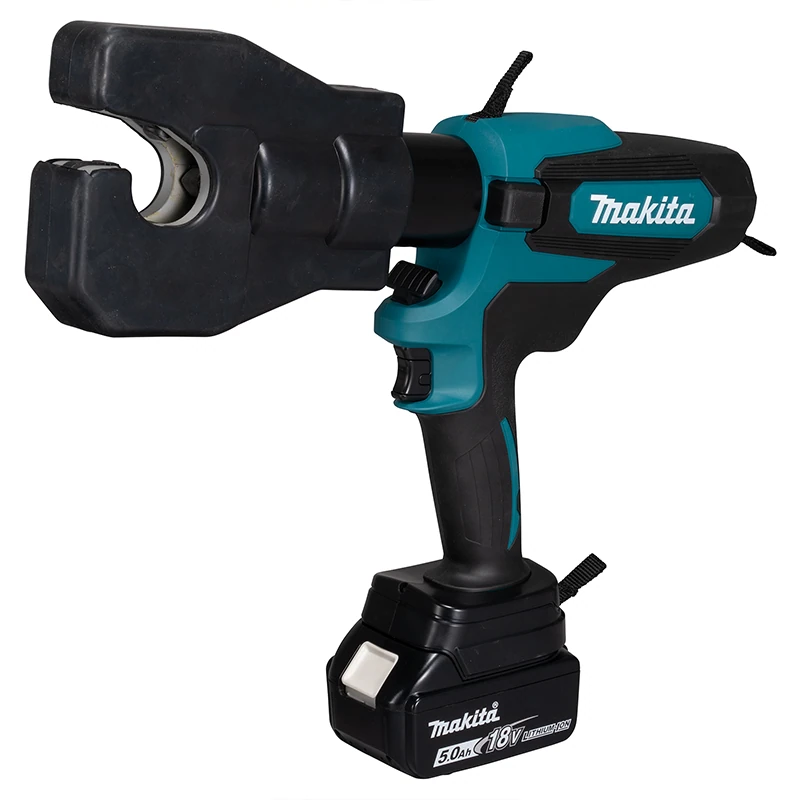

Makita DTC303 Cordless Crimper

Name: Cordless Crimper
Brand: Makita

Makita · Model DTC303

DTC303

Request a quotation

Makita Cordless Crimper

Makita DTC303 is listed in the manufacturer's cordless crimper range. OEM technical data: Output force: 60 kN; Crimping capacity: Cu: ø17.5 mm (240 mm²) Al: ø17.5 mm (240 mm²).

Official model: DTC303

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Crimper
Output force	60 kN
Crimping capacity	Cu: ø17.5 mm (240 mm²) Al: ø17.5 mm (240 mm²)
Auto retract function	Yes (Reverse rotation of motor)
On/Off setting of Auto retract function	YES
Dimensions (L x W x H)	401 x 82 x 348 mm (15-3/4 x 3-1/4 x 13-3/4″)
Dimensions (Battery)	BL1860B
Net weight	5.3 – 5.7 kg
Net weight (Battery)	BL1815N – BL1860B

Key features

Output force: 60 kN
Crimping capacity: Cu: ø17.5 mm (240 mm²) Al: ø17.5 mm (240 mm²)
Auto retract function: Yes (Reverse rotation of motor)
On/Off setting of Auto retract function: YES
Dimensions (L x W x H): 401 x 82 x 348 mm (15-3/4 x 3-1/4 x 13-3/4″)
