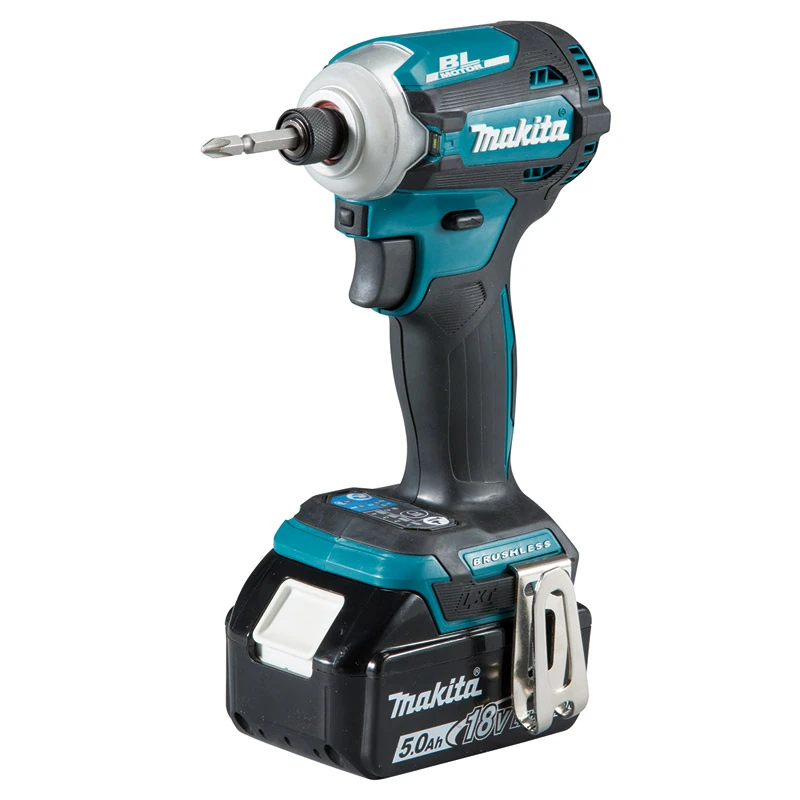

Makita DTD171 Cordless Impact Driver

Name: Cordless Impact Driver
Brand: Makita

Makita · Model DTD171

DTD171

Request a quotation

Makita Cordless Impact Driver

Makita DTD171 is listed in the manufacturer's cordless impact driver range. OEM technical data: Capacity : Machine Screw: M4 – M8 (5/32″ – 5/16″) Standard Bolt: M5 – M16 (3/16″ – 5/8″) High Strength Bolt: M5 – M14 (3/16″ – 9/16″) Coarse thread (in length): 22 – 125 mm (7/8″ – 4-7/8″); Hex Shank : 6.35 mm (1/4″).

Official model: DTD171

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Impact Driver
Capacity	Machine Screw: M4 – M8 (5/32″ – 5/16″) Standard Bolt: M5 – M16 (3/16″ – 5/8″) High Strength Bolt: M5 – M14 (3/16″ – 9/16″) Coarse thread (in length): 22 – 125 mm (7/8″ – 4-7/8″)
Hex Shank	6.35 mm (1/4″)
No Load Speed (RPM)	Max / Hard / Med / Soft / Wood / Bolt / T (1) / T (2) mode: 0 – 3,600 / 3,200 / 2,100 / 1,100 / 1,800 / 3,600 / 2,900 / 3,600
Impacts Per Minute (IPM)	Max / Hard / Med / Soft / Wood / Bolt / T (1) / T (2) mode: 0 – 3,800 / 3,600 / 2,600 / 1,100 / 3,800 / 3,800 / N/A / 2,600
Max Fastening Torque	180 N·m (1,590 in.lbs.)
Fastening Torque	Hard / Med / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Max Output	290 W
Vibration Level	Impact tightening of fasteners of the maximum capacity of the tool: 13.5 m/s²
Vibration K Factor	Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s²
Sound Pressure Level	97 dB(A)
Sound Power Level	108 dB(A)
Noise K Factor	3 dB(A)
Dimensions (L x W x H)	w/ BL1815N / BL1820B: 116x79x218 mm (4-9/16″x3-1/8″x8-5/8″) w/ BL1830B / BL1840B / BL1850B / BL1860B: 116x79x236 mm (4-9/16″x3-1/8″x9-1/4″)
Net weight	1.2 – 1.6 kg (2.7 – 3.4 lbs.)

Key features

Capacity : Machine Screw: M4 – M8 (5/32″ – 5/16″) Standard Bolt: M5 – M16 (3/16″ – 5/8″) High Strength Bolt: M5 – M14 (3/16″ – 9/16″) Coarse thread (in length): 22 – 125 mm (7/8″ – 4-7/8″)
Hex Shank : 6.35 mm (1/4″)
No Load Speed (RPM): Max / Hard / Med / Soft / Wood / Bolt / T (1) / T (2) mode: 0 – 3,600 / 3,200 / 2,100 / 1,100 / 1,800 / 3,600 / 2,900 / 3,600
Impacts Per Minute (IPM): Max / Hard / Med / Soft / Wood / Bolt / T (1) / T (2) mode: 0 – 3,800 / 3,600 / 2,600 / 1,100 / 3,800 / 3,800 / N/A / 2,600
Max Fastening Torque: 180 N·m (1,590 in.lbs.)
