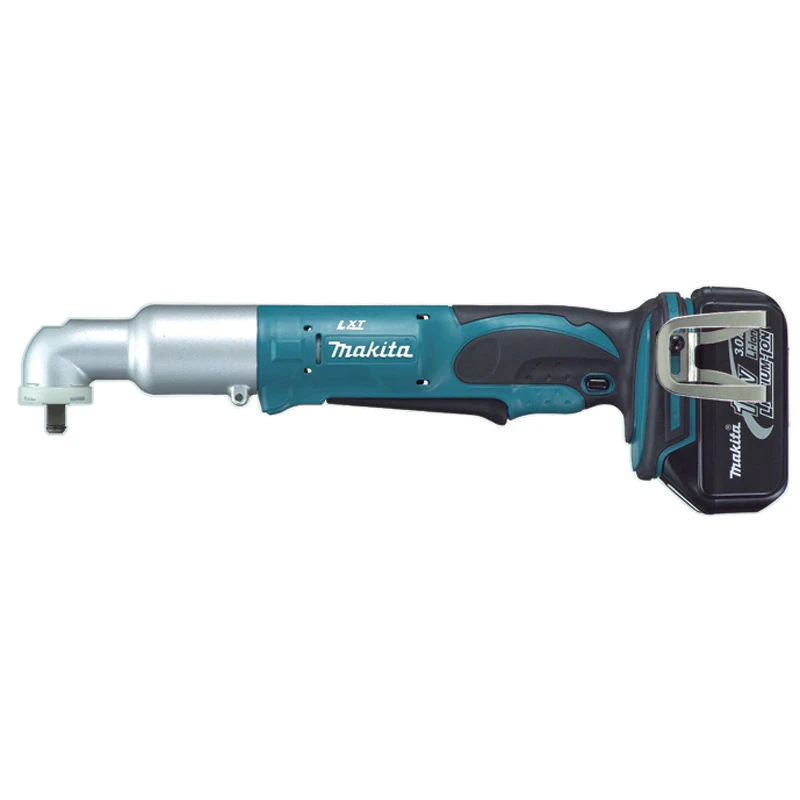

Makita DTL063 Cordless Angle Impact Wrench

Name: Cordless Angle Impact Wrench
Brand: Makita

Makita · Model DTL063

DTL063

Request a quotation

Makita Cordless Angle Impact Wrench

Makita DTL063 is listed in the manufacturer's cordless angle impact wrench range. OEM technical data: Fastening Capacities: Standard Bolt: M4 – M12 (5/32″ – 1/2″) High Strength Bolt: M4 – M8 (5/32″ – 5/16″); Square Drive: 9.5 mm (3/8″).

Official model: DTL063

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Angle Impact Wrench
Fastening Capacities	Standard Bolt: M4 – M12 (5/32″ – 1/2″) High Strength Bolt: M4 – M8 (5/32″ – 5/16″)
Square Drive	9.5 mm (3/8″)
No Load Speed (RPM)	0 – 2,000
Impacts Per Minute (IPM)	0 – 3,000
Max Fastening Torque	60 N·m (N/A ft.lbs.)
Vibration Level	Impact tightening of fasteners of the maximum capacity of the tool: 16.5 m/s²
Vibration K Factor	Impact tightening of fasteners of the maximum capacity of the tool: 2.0 m/s²
Sound Pressure Level	88 dB(A)
Sound Power Level	99 dB(A)
Noise K Factor	3 dB(A)
Dimensions (L x W x H)	387x78x116 mm (15-1/4″x3-1/16″x4-9/16″)
Net weight	1.4 – 2.0 kg (3.1 – 4.3 lbs.)

Key features

Fastening Capacities: Standard Bolt: M4 – M12 (5/32″ – 1/2″) High Strength Bolt: M4 – M8 (5/32″ – 5/16″)
Square Drive: 9.5 mm (3/8″)
No Load Speed (RPM): 0 – 2,000
Impacts Per Minute (IPM): 0 – 3,000
Max Fastening Torque: 60 N·m (N/A ft.lbs.)
