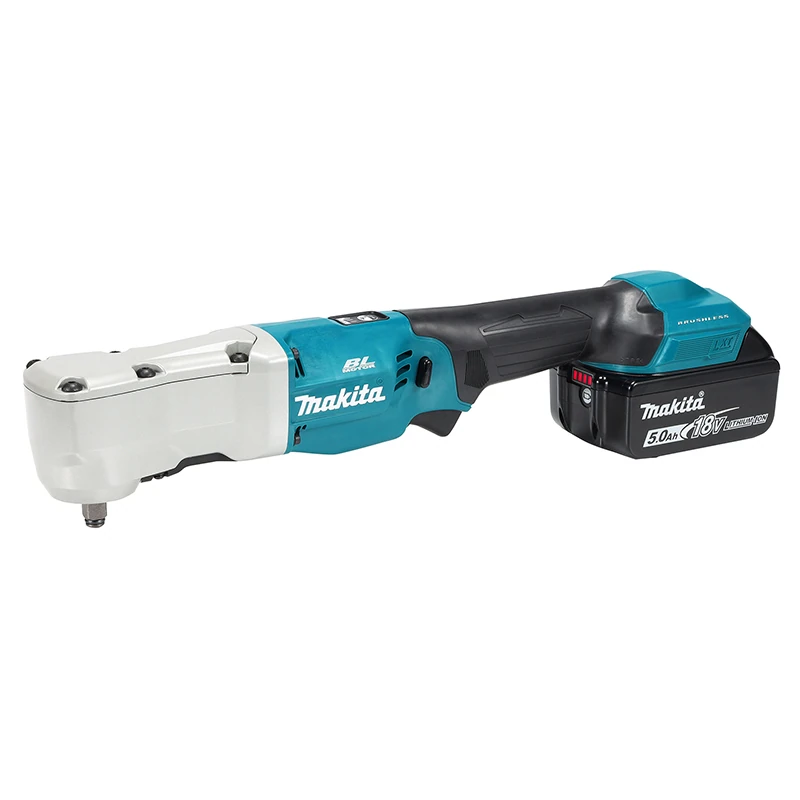

Makita DTL302 Cordless Angle Impact Wrench

Name: Cordless Angle Impact Wrench
Brand: Makita

Makita · Model DTL302

DTL302

Request a quotation

Makita Cordless Angle Impact Wrench

Makita DTL302 is listed in the manufacturer's cordless angle impact wrench range. OEM technical data: Max fastening torque: 310 – 340 N·m; Max fastening torque (Battery): BL1820B – BL1860B.

Official model: DTL302

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Angle Impact Wrench
Max fastening torque	310 – 340 N·m
Max fastening torque (Battery)	BL1820B – BL1860B
Nut-busting torque	500 – 530 N·m
Nut-busting torque (Battery)	BL1820B – BL1860B
Square drive	9.5 mm (3/8″)
Switch	Yes
No load speed	Hard / Med. / Soft: 0 – 3,200 / 0 – 1,500 / 0 – 1,000 minˉ¹
Impacts per minute	Hard / Med. / Soft: 0 – 4,000 / 0 – 2,800 / 0 – 1,800 minˉ¹
Head height	78.0 mm (3-1/16″)
Vibration level	18.0 m/s² (EN62841-2-2, Mode: impact tightening of fasteners of the maximum capacity of the tool)
Uncertainty (K) for Vibration	1.5 m/s² (EN62841-2-2, Mode: impact tightening of fasteners of the maximum capacity of the tool)
Sound pressure level	96 dB(A) (EN62841-2-2)
Sound power level	104 dB (A) (EN62841-2-2)
Uncertainty (K) for Noise	3 dB (A) (EN62841-2-2)
Dimensions (L x W x H)	396 – 414 x 80 x 86 – 92 mm (15-5/8 – 16-1/4 x 3-1/8 x 3-3/8 – 3-5/8″)
Dimensions (Battery)	Tool only – BL1860B
Net weight	1.8 – 2.1 kg
Net weight (Battery)	BL1820B – BL1860B

Key features

Max fastening torque: 310 – 340 N·m
Max fastening torque (Battery): BL1820B – BL1860B
Nut-busting torque: 500 – 530 N·m
Nut-busting torque (Battery): BL1820B – BL1860B
Square drive: 9.5 mm (3/8″)
