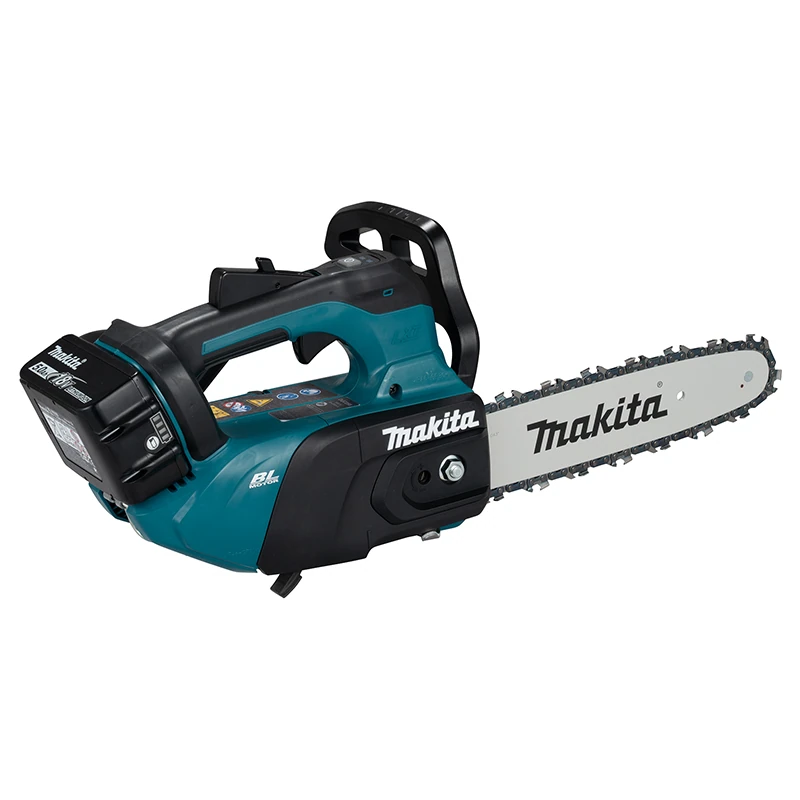

Makita DUC258 Cordless Chain Saw

Name: Cordless Chain Saw
Brand: Makita

Makita · Model DUC258

DUC258

Request a quotation

Makita Cordless Chain Saw

Makita DUC258 is listed in the manufacturer's cordless chain saw range. OEM technical data: Chain type: 80TXL / 90PX / 25AP; Chain pitch: 0.325 / 3/8 / 1/4″.

Official model: DUC258

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Chain Saw
Chain type	80TXL / 90PX / 25AP
Chain pitch	0.325 / 3/8 / 1/4″
Chain gauge	1.1 / 1.1 / 1.3 mm (0.043 / 0.043 / 0.05″)
Guide bar length	200, 250 mm (8, 10″)
Chain speed (at no load)	0 – 24 m/s
Direct Drive	Yes
Anti-fall captive nut	Yes
Oil tank capacity	140 mL (4.7 oz)
Chain oil view window	Yes
Soft grip	Yes
Vibration level	3.3 m/s² (EN62841-1 and EN ISO 11681-2, Mode: Cutting wood)
Uncertainty (K) for Vibration	1.5 m/s² (EN62841-1 and EN ISO 11681-2, Mode: Cutting wood)
Sound pressure level	92 dB(A) (EN62841-1 and EN ISO 11681-2)
Sound power level	100 dB(A) (EN62841-1 and EN ISO 11681-2)
Uncertainty (K) for Noise	3 dB(A) (EN62841-1 and EN ISO 11681-2)
Dimensions (L x W x H)	287 x 181 x 194 mm (11-1/4 x 7-1/8 x 7-5/8″)
Dimensions (Battery)	BL1860B
Dimensions (Attachment)	w/o Guide bar, Saw chain
Dimensions 2 (L x W x H)	519 x 181 x 194 mm (20-1/2 x 7-1/8 x 7-5/8″)
Dimensions 2 (Battery)	BL1860B
Dimensions 2 (Attachment)	250mm Guide bar, 80TXL Saw chain
Net weight	3.0 kg
Net weight (Battery)	BL1860B
Net weight (Attachment)	250mm Guide bar, 80TXL Saw chain, Chain oil
Net weight (Tool only)	1.8 kg
Net weight (Tool only) (Attachment)	w/o Guide bar, Saw chain, Chain oil, Battery

Key features

Chain type: 80TXL / 90PX / 25AP
Chain pitch: 0.325 / 3/8 / 1/4″
Chain gauge: 1.1 / 1.1 / 1.3 mm (0.043 / 0.043 / 0.05″)
Guide bar length : 200, 250 mm (8, 10″)
Chain speed (at no load): 0 – 24 m/s
