Makita GA9090 Angle Grinder

Name: Angle Grinder
Brand: Makita

Makita · Model GA9090

GA9090

Request a quotation

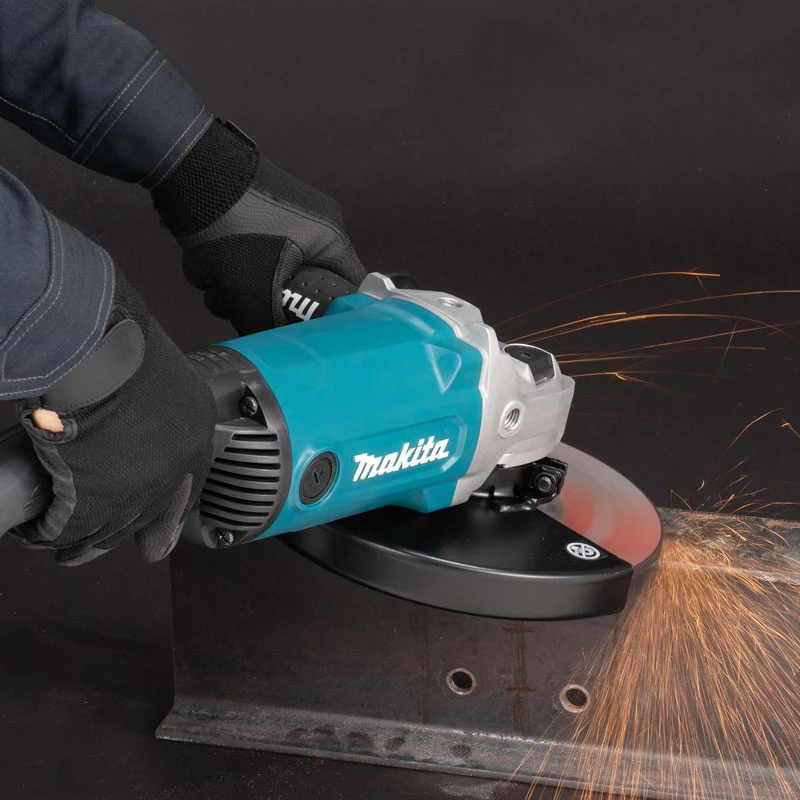

Makita Angle Grinder

Makita GA9090 is listed in the manufacturer's angle grinder range. OEM technical data: Continuous rating input: 2,200 W; Wheel diameter: 230 mm (9″).

Official model: GA9090

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Angle Grinder
Continuous rating input	2,200 W
Wheel diameter	230 mm (9″)
Brush diameter capacity	175 mm (7″)
Cup brush diameter capacity	100 mm (4″)
Disc paper diameter	180 mm (7″)
Rubber pad diameter	170 mm (7″)
Hole diameter	22.23 mm (7/8″)
No load speed	6,600 minˉ¹
Thread	M14x2.0
Abrasive grinding wheel diameter	230 mm (9″)
Abrasive cut-off wheel diameter	230 mm (9″)
Max abrasive wheel thickness	6.5 mm (1/4″)
Diamond wheel diameter	230 mm (9″)
Cup diamond wheel usable or not?	mm: NO, inch: NO
Switch type	Large trigger
Side grip attachment position	3 positions
Soft grip (Main handle)	No
Cutting depth	69 mm (2-3/4″)
Vibration level	Surface grinding w/ Normal side grip: 7.0 m/s² Surface grinding w/ Anti-vibration side grip: 6.7 m/s² Disc sanding w/ Normal side grip: 2.7 m/s² Disc sanding w/ Anti-vibration side grip: 2.5 m/s²
Vibration K factor	Surface grinding w/ Normal side grip: 1.5 m/s² Surface grinding w/ Anti-vibration side grip: 1.5 m/s² Disc sanding w/ Normal side grip: 1.5 m/s² Disc sanding w/ Anti-vibration side grip: 1.5 m/s²
Sound pressure level	93 dB(A)
Sound power level	101 dB(A)
Noise K factor	3 dB(A)
Dimensions (L x W x H)	438 x 250 x 144 mm (17-1/4 x 9-7/8 x 5-5/8″)
Net weight	5.3 – 7.4 kg (11.7 – 16.3 lbs.)
Power supply cord	2.0 m (6.6 ft)

Key features

Continuous rating input: 2,200 W
Wheel diameter: 230 mm (9″)
Brush diameter capacity: 175 mm (7″)
Cup brush diameter capacity: 100 mm (4″)
Disc paper diameter: 180 mm (7″)
