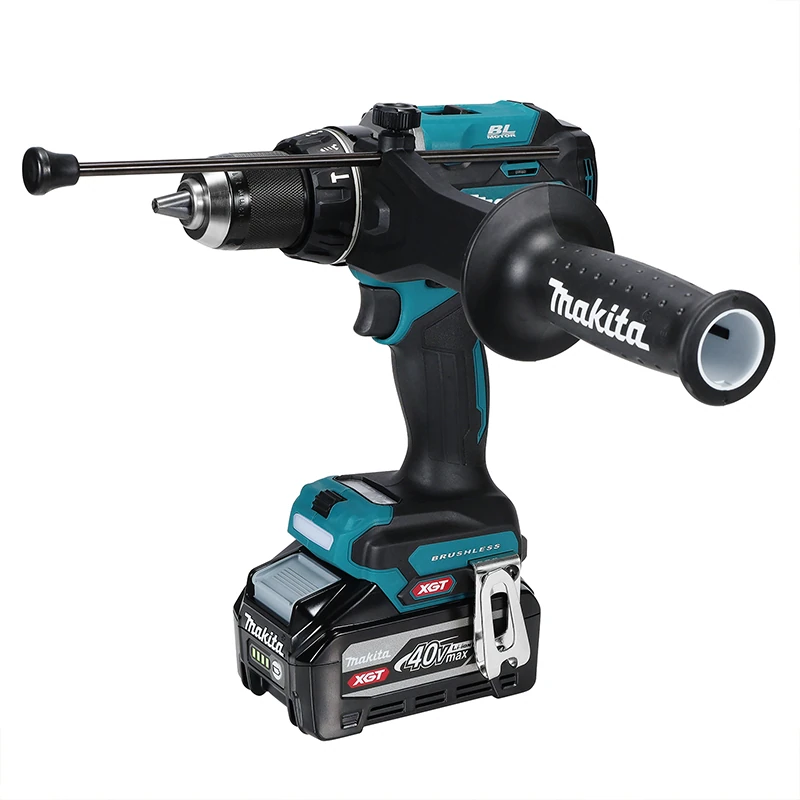

Makita HP003G Cordless Hammer Driver Drill

Name: Cordless Hammer Driver Drill
Brand: Makita

Makita · Model HP003G

HP003G

Request a quotation

Makita Cordless Hammer Driver Drill

Makita HP003G is listed in the manufacturer's cordless hammer driver drill range. OEM technical data: No load speed: High: 0 – 2,400 minˉ¹ Med.: 0 – 1,800 minˉ¹ Low: 0 – 650 minˉ¹; Impacts per minute: High: 0 – 36,000 minˉ¹ Med.: 0 – 27,000 minˉ¹ Low: 0 – 9,750 minˉ¹.

Official model: HP003G

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Hammer Driver Drill
No load speed	High: 0 – 2,400 minˉ¹ Med.: 0 – 1,800 minˉ¹ Low: 0 – 650 minˉ¹
Impacts per minute	High: 0 – 36,000 minˉ¹ Med.: 0 – 27,000 minˉ¹ Low: 0 – 9,750 minˉ¹
Capacity	Wood (Drill bit): 20 mm (13/16″) Flat bit: 40 mm (1-9/16″) Single spur auger bit: 50 mm (2″) Ship auger: 38 mm (1-1/2″) Formwork: 30 mm (1-3/16″) Forstner drill bit: 50 mm (2″) Wood (Self-feed bit): 92 mm (3-5/8″) Adjustable circle: 200 mm (7-7/8″) Wood (Hole saw): 152 mm (6″) Multi-siding core bit: 220 mm (8-5/8″) Steel: 20 mm (13/16″) Masonry: 20 mm (13/16″) Step/cone drill: 38 mm (1-1/2″) Glass: 16 mm (5/8″) Brush / flap wheel: 100 mm (3-15/16″) Wood (Auger bit): 50 mm (2″) Siding board: 220 mm (8-5/8″)
Max torque	180 N·m (1,590 in.lbs)
Max fastening torque	Hard: 150 N·m (1,330 in.lbs.) Soft, High / Med. / Low: 28 / 36 / 88 N·m (250 / 320 / 780 in.lbs.)
Chuck capacity	13 mm (1/2″)
Type of keyless drill chuck	Single metal sleeve
Clutch torque setting	High / Med. / Low: 25 / 30 / 41
Clutch system	Electronical
Vibration level	6.8 m/s² (EN62841-2-1, Mode: Impact drilling into concrete), 2.5 m/s² or less (EN62841-2-1, Mode: Drilling into metal)
Uncertainty (K) for Vibration	1.5 m/s² (EN62841-2-1, Mode: Impact drilling into concrete), 1.5 m/s² (EN62841-2-1, Mode: Drilling into metal)
Sound pressure level	88 dB (A) (EN62841-2-1)
Sound power level	96 dB (A) (EN62841-2-1)
Uncertainty (K) for Noise	3 dB (A) (EN62841-2-1)
Dimensions (L x W x H)	197 x 86 x 284 mm (7-3/4 x 3-3/8 x 11-1/8″)
Dimensions (Battery)	BL4040F
Net weight	2.8 – 4.0 kg (6.2 – 8.8 lbs.)
Net weight (Battery)	BL4020 – BL4080F
Net weight (Attachment)	Side grip

Key features

No load speed: High: 0 – 2,400 minˉ¹ Med.: 0 – 1,800 minˉ¹ Low: 0 – 650 minˉ¹
Impacts per minute: High: 0 – 36,000 minˉ¹ Med.: 0 – 27,000 minˉ¹ Low: 0 – 9,750 minˉ¹
Capacity: Wood (Drill bit): 20 mm (13/16″) Flat bit: 40 mm (1-9/16″) Single spur auger bit: 50 mm (2″) Ship auger: 38 mm (1-1/2″) Formwork: 30 mm (1-3/16″) Forstner drill bit: 50 mm (2″) Wood (Self-feed bit): 92 mm (3-5/8″) Adjustable circle: 200 mm (7-7/8″) Wood (Hole saw): 152 mm (6″) Multi-siding core bit: 220 mm (8-5/8″) Steel: 20 mm (13/16″) Masonry: 20 mm (13/16″) Step/cone drill: 38 mm (1-1/2″) Glass: 16 mm (5/8″) Brush / flap wheel: 100 mm (3-15/16″) Wood (Auger bit): 50 mm (2″) Siding board: 220 mm (8-5/8″)
Max torque: 180 N·m (1,590 in.lbs)
Max fastening torque : Hard: 150 N·m (1,330 in.lbs.) Soft, High / Med. / Low: 28 / 36 / 88 N·m (250 / 320 / 780 in.lbs.)
