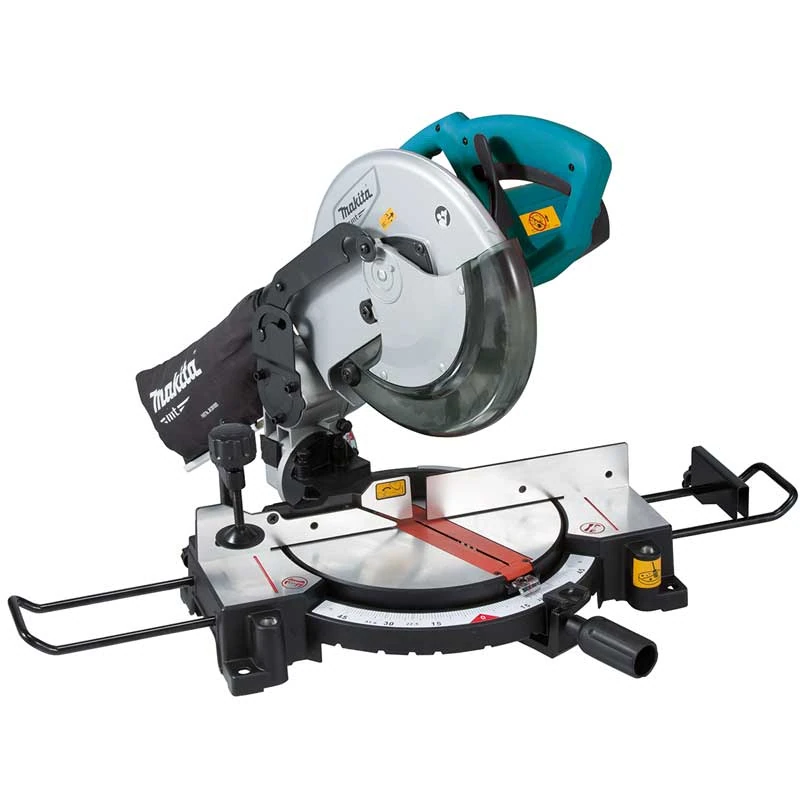

Makita M2300B Compound Miter Saw

Name: Compound Miter Saw
Brand: Makita

Makita · Model M2300B

M2300B

Request a quotation

Makita Compound Miter Saw

Makita M2300B is listed in the manufacturer's compound miter saw range. OEM technical data: Continuous Rating Input: 1,500W; Wheel diameter: 255 mm (10″).

Official model: M2300B

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Compound Miter Saw
Carbon Brush	23000123
Continuous Rating Input	1,500W
Wheel diameter	255 mm (10″)
Hole diameter	25.4/ 30 mm (1/ 1-3/16″)
Blade body thickness	1.5 – 3.2 mm
No load speed	4,200 minˉ¹
Miter angle	Left: 45° Right: 45°
Bevel angle	45° L
Max cutting capacity	0° Miter: 75 x 130 mm (2-15/16 x 5-1/8″) 45° Miter, L/R: 75 x 90 mm (2-15/16 x 3-9/16″)
Vibration level	2.5 m/s² or less
Vibration K factor	1.5 m/s²
Sound pressure level	92 dB(A)
Sound power level	105 dB(A)
Noise K factor	3 dB(A)
Dimensions (L x W x H)	610 x 485 x 515 mm (24 x 19-1/8 x 20-1/4″)
Net weight	14.7 kg (32.5 lbs.)
Power supply cord	2.5 m (8.2 ft)

Key features

Continuous Rating Input: 1,500W
Wheel diameter: 255 mm (10″)
Hole diameter: 25.4/ 30 mm (1/ 1-3/16″)
Blade body thickness: 1.5 – 3.2 mm
No load speed: 4,200 minˉ¹
