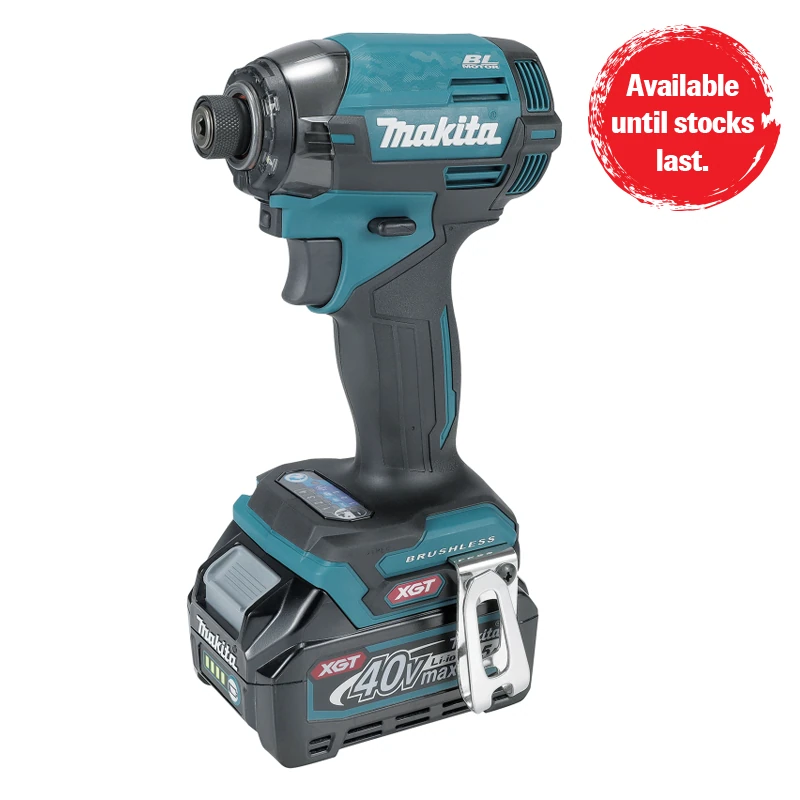

Makita TD002G Cordless Impact Driver

Name: Cordless Impact Driver
Brand: Makita

Makita · Model TD002G

TD002G

Request a quotation

Makita Cordless Impact Driver

Makita TD002G is listed in the manufacturer's cordless impact driver range. OEM technical data: Capacity: Machine screw: M4 – M8 (5/32 – 5/16″) Standard bolt: M5 – M16 (3/16 – 5/8″) High strength bolt: M5 – M14 (3/16 – 9/16″) Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) Steel: 22 mm (7/8″) Wood (Auger bit): 24 mm (15/16″); Hole saw diameter: 38 mm (1-1/2″).

Official model: TD002G

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Impact Driver
Capacity	Machine screw: M4 – M8 (5/32 – 5/16″) Standard bolt: M5 – M16 (3/16 – 5/8″) High strength bolt: M5 – M14 (3/16 – 9/16″) Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) Steel: 22 mm (7/8″) Wood (Auger bit): 24 mm (15/16″)
Hole saw diameter	38 mm (1-1/2″)
Hex Shank	6.35 mm (1/4″)
Shank/Drive	Hex Shank 6.35 mm (1/4″)
No Load Speed (RPM)	Max / Hard / Med. / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 – 3,700 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 / 0 – 1,800 / 0 – 2,700 / 0 – 3,700 / 0 – 3,700 / 0 – 2,900 / 0 – 3,700
Impacts Per Minute (IPM)	Max / Hard / Med. / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 – 4,600 / 0 – 3,600 / 0 – 2,600 / 0 – 1,400 / 0 – 4,600 / N/A / 0 – 4,600 / 0 – 4,600 / N/A / 0 – 2,600
Fastening torque	Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Max Fastening Torque	220 N·m (1,950 in.lbs.)
Max output	500 W
Vibration Level	Impact tightening of fasteners of the maximum capacity of the tool: 12.9 m/s²
Vibration K factor	1.5 m/s²
Sound Pressure Level	94 dB(A)
Sound power level	105 dB(A)
Noise K factor	3 dB(A)
Dimensions (L x W x H)	w/o Battery: 119 x 86 x 197 mm (4-11/16 x 3-3/8 x 7-3/4″) w/ BL4020 / BL4025: 119 x 86 x 247 mm (4-11/16 x 3-3/8 x 9-3/4″) w/ BL4040: 119 x 86 x 252 mm (4-11/16 x 3-3/8 x 9-7/8″) w/ BL4050F: 119 x 86 x 278 mm (4-11/16 x 3-3/8 x 11″) w/ BL4080F: 119 x 86 x 297 mm (4-11/16 x 3-3/8 x 11-3/4″)
Net weight	1.7 – 2.9 kg (3.7 – 6.4 lbs.)

Key features

Capacity: Machine screw: M4 – M8 (5/32 – 5/16″) Standard bolt: M5 – M16 (3/16 – 5/8″) High strength bolt: M5 – M14 (3/16 – 9/16″) Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) Steel: 22 mm (7/8″) Wood (Auger bit): 24 mm (15/16″)
Hole saw diameter: 38 mm (1-1/2″)
Hex Shank : 6.35 mm (1/4″)
Shank/Drive: Hex Shank 6.35 mm (1/4″)
No Load Speed (RPM) : Max / Hard / Med. / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 – 3,700 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 / 0 – 1,800 / 0 – 2,700 / 0 – 3,700 / 0 – 3,700 / 0 – 2,900 / 0 – 3,700
