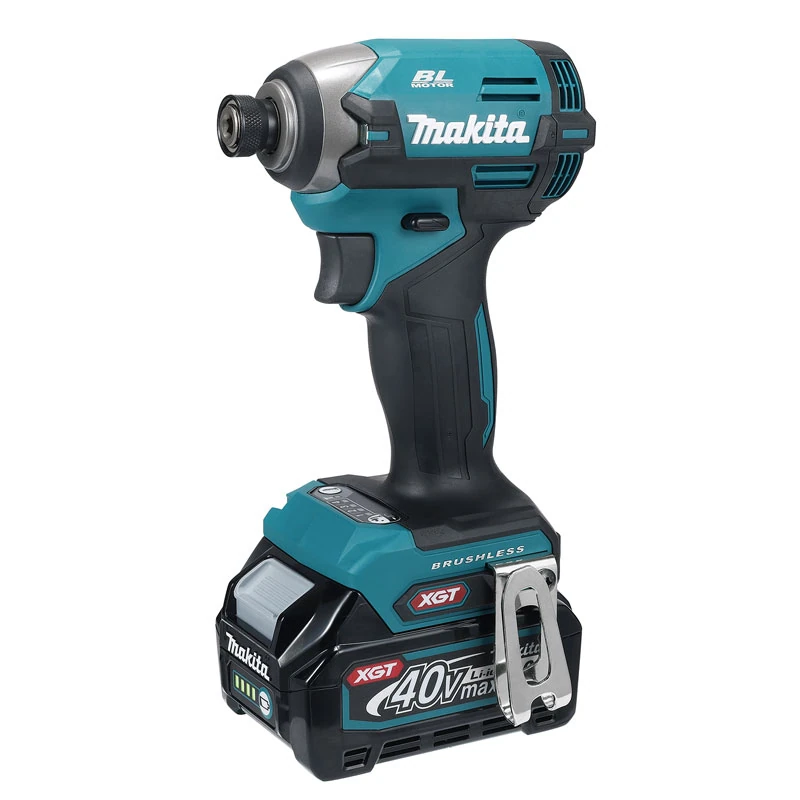

Makita TD003G Cordless Impact Driver

Name: Cordless Impact Driver
Brand: Makita

Makita · Model TD003G

TD003G

Request a quotation

Makita Cordless Impact Driver

Makita TD003G is listed in the manufacturer's cordless impact driver range. OEM technical data: Capacity: Machine screw: M4 – M8 (5/32 – 5/16″) High strength bolt: M5 – M14 (3/16 – 9/16″) Steel: 22 mm (7/8″) Wood (Self-feed bit): N/A mm (N/A”) Standard bolt: M5 – M16 (3/16 – 5/8″) Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) Wood (Auger bit): 24 mm (15/16″); Masonry drill diameter: N/A mm (N/A”).

Official model: TD003G

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Impact Driver
Capacity	Machine screw: M4 – M8 (5/32 – 5/16″) High strength bolt: M5 – M14 (3/16 – 9/16″) Steel: 22 mm (7/8″) Wood (Self-feed bit): N/A mm (N/A”) Standard bolt: M5 – M16 (3/16 – 5/8″) Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) Wood (Auger bit): 24 mm (15/16″)
Masonry drill diameter	N/A mm (N/A”)
Hole saw diameter	38 mm (1-1/2″)
Shank/Drive	Hex Shank 6.35 mm (1/4″)
No Load Speed (RPM)	Max / Hard / Med. / Soft / T mode: 0 – 3,700 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 / 0 – 2,400
Impacts per minute (IPM)	Max / Hard / Med. / Soft / T mode: 0 – 4,100 / 0 – 3,600 / 0 – 2,600 / 0 – 1,400 / N/A
Fastening torque	Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Max fastening torque	210 N·m (1,860 in.lbs.)
Max output	520 W
Vibration Level	Impact tightening of fasteners of the maximum capacity of the tool: 11.9 m/s²
Vibration K Factor	Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s²
Sound Pressure Level	95 dB(A)
Sound Power Level	106 dB(A)
Noise K Factor	3 dB(A)
Dimensions (L x W x H)	w/o Battery: 121 x 86 x 195 mm (4-3/4 x 3-3/8 x 7-5/8″) w/ BL4040: 121 x 86 x 252 mm (4-3/4 x 3-3/8 x 9-7/8″) w/ BL4080F: 121 x 86 x 293 mm (4-3/4 x 3-3/8 x 11-1/2″) w/ BL4020 / BL4025: 121 x 86 x 245 mm (4-3/4 x 3-3/8 x 9-5/8″) w/ BL4050F: 121 x 86 x 274 mm (4-3/4 x 3-3/8 x 10-3/4″)
Net weight	1.7 – 2.9 kg (3.7 – 6.4 lbs.)

Key features

Capacity: Machine screw: M4 – M8 (5/32 – 5/16″) High strength bolt: M5 – M14 (3/16 – 9/16″) Steel: 22 mm (7/8″) Wood (Self-feed bit): N/A mm (N/A”) Standard bolt: M5 – M16 (3/16 – 5/8″) Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″) Wood (Auger bit): 24 mm (15/16″)
Masonry drill diameter: N/A mm (N/A”)
Hole saw diameter: 38 mm (1-1/2″)
Shank/Drive: Hex Shank 6.35 mm (1/4″)
No Load Speed (RPM): Max / Hard / Med. / Soft / T mode: 0 – 3,700 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 / 0 – 2,400
