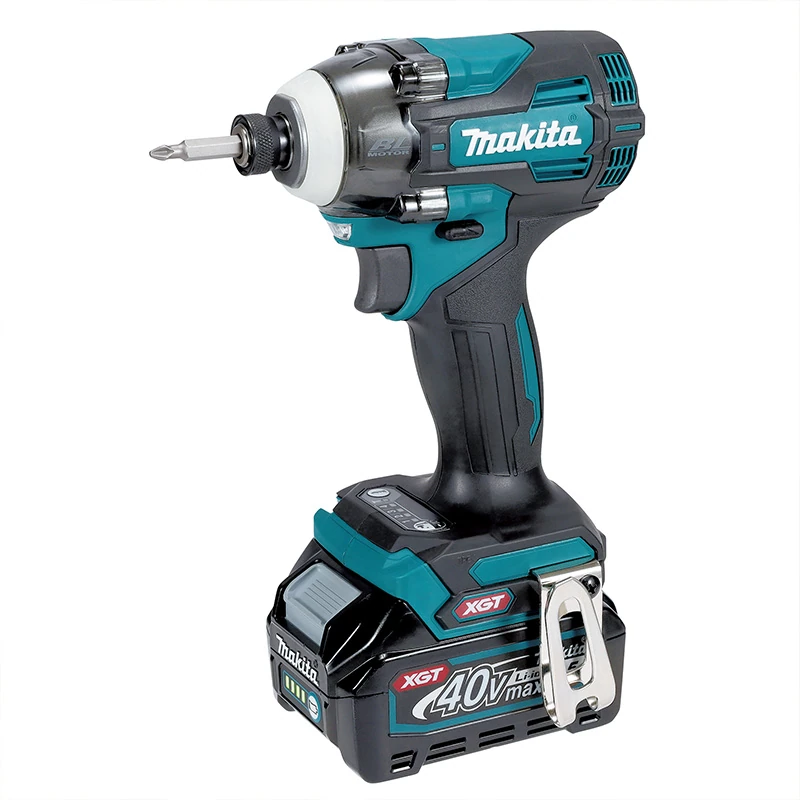

Makita TD004G Cordless Impact Driver
Makita · Model TD004G
TD004GRequest a quotation
Makita Cordless Impact Driver
Makita TD004G is listed in the manufacturer's cordless impact driver range. OEM technical data: Impact power selection: 4 stages + 1 T-mode; Capacity: Machine screw: M4 – M8 mm (5/32 – 5/16″) Standard bolt: M5 – M20 (3/16 – 13/16″) High strength bolt: M5 – M14 (3/16 – 9/16″) Coarse thread (in length): 22 – 150 mm (7/8 – 5-7/8″) Steel: 22 mm (7/8″) Wood (Auger bit): 24 mm (15/16″).
- Official model
- TD004G
Pricing, model selection, stock and delivery are confirmed in your quotation.
Technical information
| Product type | Cordless Impact Driver |
|---|---|
| Impact power selection | 4 stages + 1 T-mode |
| Capacity | Machine screw: M4 – M8 mm (5/32 – 5/16″) Standard bolt: M5 – M20 (3/16 – 13/16″) High strength bolt: M5 – M14 (3/16 – 9/16″) Coarse thread (in length): 22 – 150 mm (7/8 – 5-7/8″) Steel: 22 mm (7/8″) Wood (Auger bit): 24 mm (15/16″) |
| Hole saw diameter | 38 mm (1-1/2″) |
| Shank/Drive | Hex Shank 6.35 mm (1/4″) |
| Max fastening torque | 230 N·m |
| No load speed | Max / Hard / Med. / Soft: 0 – 3,900 / 0 – 3,000 / 0 – 2,100 / 0 – 1,200 minˉ¹ |
| Impacts per minute | Max / Hard / Med. / Soft: 0 – 3,900 / 0 – 3,600 / 0 – 3,100 / 0 – 1,900 minˉ¹ |
| Vibration level (EN62841-2-2) | Impact tightening of fasteners of the maximum capacity of the tool: 23.5 m/s² |
| Vibration K factor (EN62841-2-2) | Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s² |
| Sound pressure level (EN62841-2-2) | 100 dB(A) |
| Sound power level (EN62841-2-2) | 108 dB(A) |
| Noise K factor (EN62841-2-2) | 3 dB(A) |
| LED job light | Type: 1 LED above trigger Function: With preglow and afterglow functions |
| One-touch bit installation | Yes |
| Dimensions (L x W x H) | 136 x 86 x 248 mm (5-3/8 x 3-3/8 x 9-3/4″) |
| Dimensions (Battery) | BL4025 |
| Net weight | 1.8 – 3.1 kg |
| Net weight (Battery) | BL4020 – BL4080F |
Key features
Impact power selection: 4 stages + 1 T-mode
Capacity: Machine screw: M4 – M8 mm (5/32 – 5/16″) Standard bolt: M5 – M20 (3/16 – 13/16″) High strength bolt: M5 – M14 (3/16 – 9/16″) Coarse thread (in length): 22 – 150 mm (7/8 – 5-7/8″) Steel: 22 mm (7/8″) Wood (Auger bit): 24 mm (15/16″)
Hole saw diameter: 38 mm (1-1/2″)
Shank/Drive: Hex Shank 6.35 mm (1/4″)
Max fastening torque: 230 N·m
Manufacturer reference
View official product informationCatalogues & documents
Manufacturer document reference OEM websiteMakita TD004G · parts diagramMakita TD004G · instruction manualHow do I request a quotation?
Select a quantity, add this listing to your quotation list, then send your company, location and technical requirements through the RFQ form.
How is availability confirmed?
The model shown identifies the manufacturer product. Stock, variant, pricing and delivery are confirmed in the quotation.
