Makita

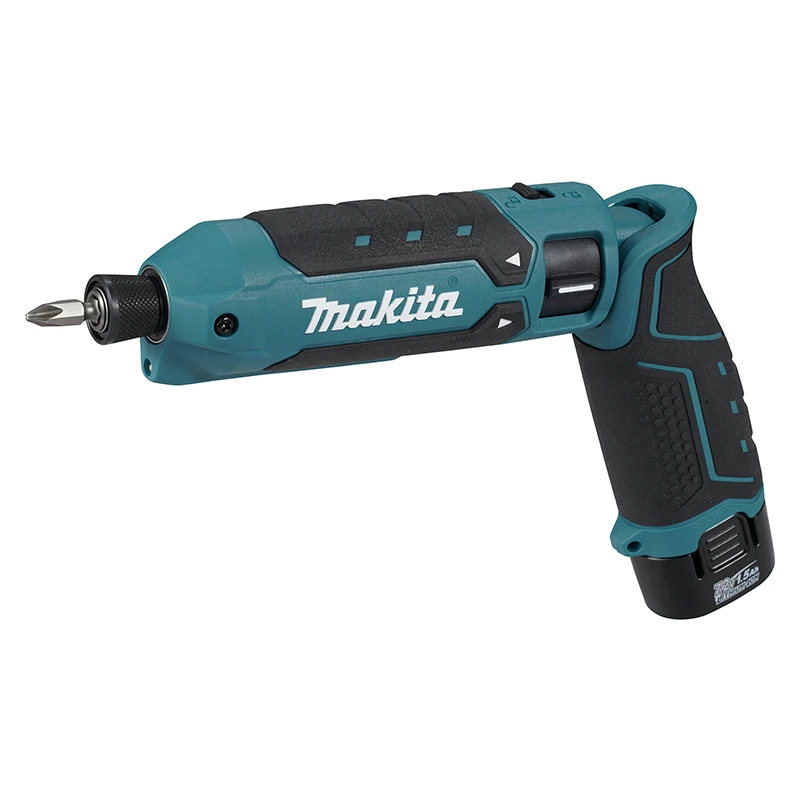

Makita TD023D Cordless Impact Driver
Makita · Model TD023D
TD023DRequest a quotation
Makita Cordless Impact Driver
Makita TD023D is listed in the manufacturer's cordless impact driver range. OEM technical data: Max fastening torque: 25 N·m; No load speed: 0 – 2,450 minˉ¹.
- Official model
- TD023D
Pricing, model selection, stock and delivery are confirmed in your quotation.
Technical information
| Product type | Cordless Impact Driver |
|---|---|
| Max fastening torque | 25 N·m |
| No load speed | 0 – 2,450 minˉ¹ |
| Impacts per minute | 0 – 3,000 minˉ¹ |
| Capacity | Machine screw: M3 – M8 (1/8 – 5/16″) Standard bolt: M3 – M8 (1/8 – 5/16″) High strength bolt: M3 – M6 (1/8 – 1/4″) Coarse thread (in length): 22 – 45 mm (7/8 – 1-3/4″) Steel: 3.5 mm (1/8″) Wood (Auger bit): 3.5 mm (1/8″) |
| One-touch bit installation | Yes |
| Manual tightening | Yes |
| Shank / Drive | Hex Shank 6.35 mm (1/4″) |
| Switch type | Rotary switch/ Variable |
| Soft grip | Yes |
| Vibration level | 6.2 m/s² (EN62841-2-2, Mode: Impact tightening of fasteners of the maximum capacity of the tool) |
| Uncertainty (K) for Vibration | 1.5 m/s² (EN62841-2-2, Mode: Impact tightening of fasteners of the maximum capacity of the tool) |
| Sound pressure level | 87 dB(A) (EN62841-2-2) |
| Sound power level | 95 dB(A) (EN62841-2-2) |
| Uncertainty (K) for Noise | 3 dB(A) (EN62841-2-2) |
| Dimensions (L x W x H) | 229 x 42 x 142 mm (9 x 1-5/8 x 5-5/8″) |
| Dimensions (Battery) | BL0715 |
| Dimensions (Other conditions) | Pistol style |
| Dimensions 2 (L x W x H) | 285 x 42 x 52 mm (11-1/4 x 1-5/8 x 2-1/16″) |
| Dimensions 2 (Battery) | BL0715 |
| Dimensions 2 (Other conditions) | Straight style |
| Net weight | 0.58 kg |
| Net weight (Battery) | BL0715 |
Key features
Max fastening torque: 25 N·m
No load speed: 0 – 2,450 minˉ¹
Impacts per minute: 0 – 3,000 minˉ¹
Capacity: Machine screw: M3 – M8 (1/8 – 5/16″) Standard bolt: M3 – M8 (1/8 – 5/16″) High strength bolt: M3 – M6 (1/8 – 1/4″) Coarse thread (in length): 22 – 45 mm (7/8 – 1-3/4″) Steel: 3.5 mm (1/8″) Wood (Auger bit): 3.5 mm (1/8″)
One-touch bit installation: Yes
Manufacturer reference
View official product informationCatalogues & documents
Manufacturer document reference OEM websiteMakita TD023D · parts diagramMakita TD023D · instruction manualMakita TD023D · product leafletHow do I request a quotation?
Select a quantity, add this listing to your quotation list, then send your company, location and technical requirements through the RFQ form.
How is availability confirmed?
The model shown identifies the manufacturer product. Stock, variant, pricing and delivery are confirmed in the quotation.
