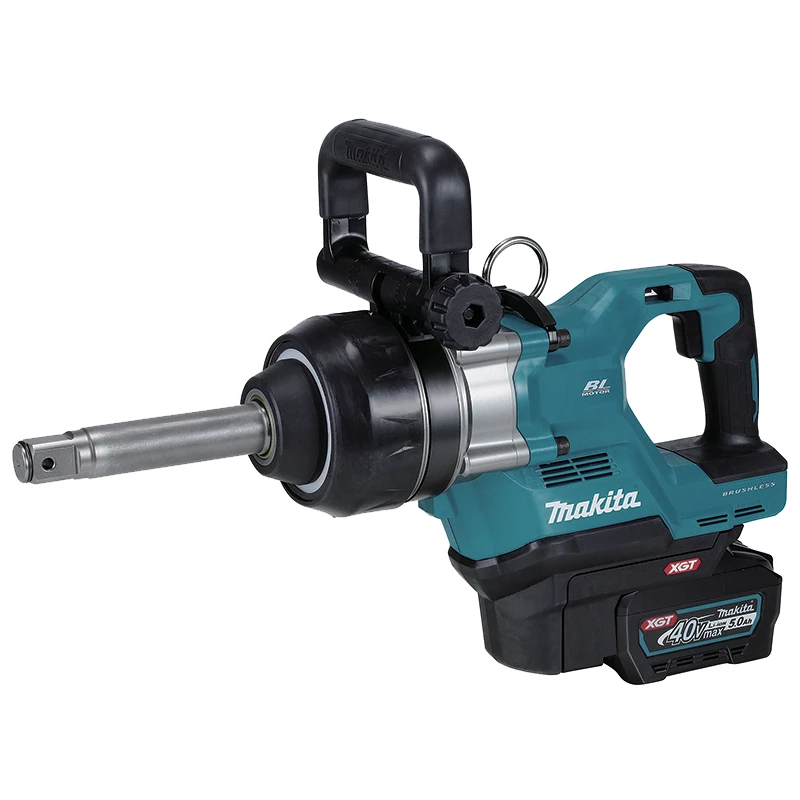

Makita TW010G Cordless Impact Wrench

Name: Cordless Impact Wrench
Brand: Makita

Makita · Model TW010G

TW010G

Request a quotation

Makita Cordless Impact Wrench

Makita TW010G is listed in the manufacturer's cordless impact wrench range. OEM technical data: Anvil type: Long; Anvil length (Exposure length) : 163 mm (6-3/8″).

Official model: TW010G

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Impact Wrench
Anvil type	Long
Anvil length (Exposure length)	163 mm (6-3/8″)
Shank/Drive	Square Drive 25.4 mm (1″)
Square drive	25.4 mm (1″)
Max fastening torque	3,150 N·m (2,323 ft.lbs.)
Max fastening torque (Other conditions)	The value at 6 seconds after seating when tightening M36 friction grip bolt
Nut-busting torque	4,000 N·m (2,950 ft.lbs.)
Impact power selection	4 stages + 3 each step of F/R auto-stop function
Loosening time	2.9 sec
No load speed	Max / Hard / Med. / Soft: 0 – 1,200 / 0 – 850 / 0 – 700 / 0 – 600 minˉ¹
Impacts per minute	Max / Hard / Med. / Soft: 0 – 1,750 / 0 – 1,500 / 0 – 1,300 / 0 – 1,200 minˉ¹
Vibration level (EN62841-2-2)	Impact tightening of fasteners of the maximum capacity of the tool: 33.4 m/s²
Vibration K factor (EN62841-2-2)	Impact tightening of fasteners of the maximum capacity of the tool: 1.6 m/s²
Sound pressure level (EN62841-2-2)	103 dB(A)
Sound power level (EN62841-2-2)	111 dB(A)
Noise K factor (EN62841-2-2)	3 dB(A)
Side handle angle setting	360° (toolless)
Dimensions (L x W x H)	570 x 135 x 276 mm (22-1/2 x 5-5/16 x 10-7/8″)
Dimensions (Battery)	BL4025
Net weight	12.0 – 12.9 kg (26.5 – 28.4 lbs.)
Net weight (Battery)	BL4040F – BL4080F

Key features

Anvil type: Long
Anvil length (Exposure length) : 163 mm (6-3/8″)
Shank/Drive: Square Drive 25.4 mm (1″)
Square drive: 25.4 mm (1″)
Max fastening torque: 3,150 N·m (2,323 ft.lbs.)
