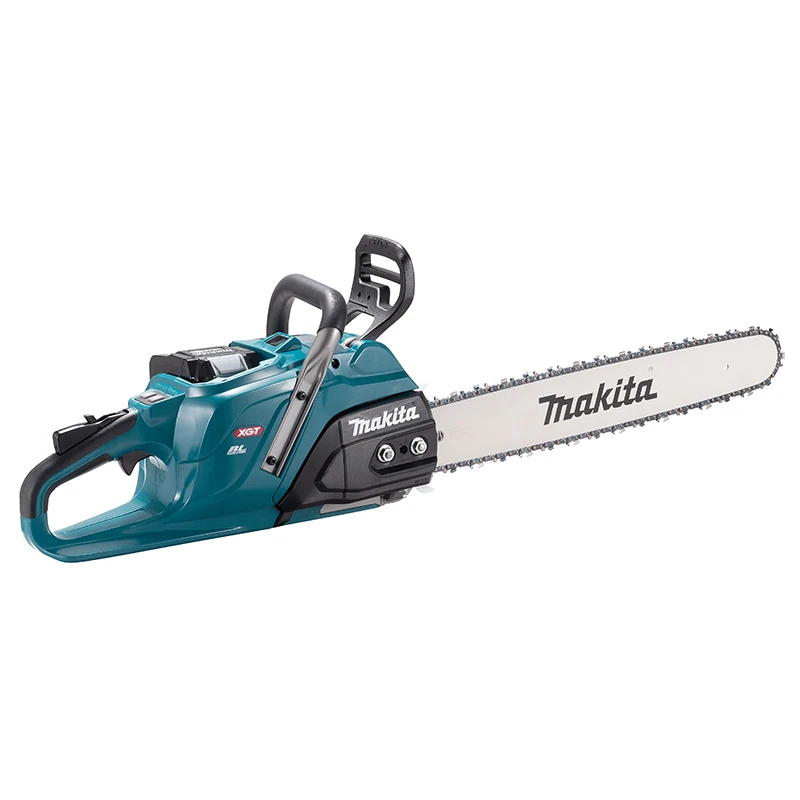

Makita UC030G Cordless Chain Saw

Name: Cordless Chain Saw
Brand: Makita

Makita · Model UC030G

UC030G

Request a quotation

Makita Cordless Chain Saw

Makita UC030G is listed in the manufacturer's cordless chain saw range. OEM technical data: Chain speed (at no load): 0 – 20.0, 24.5, 29.0 m/s; Chain type: 95TXL / 22BPX.

Official model: UC030G

Required quantityEnquire on WhatsApp

Pricing, model selection, stock and delivery are confirmed in your quotation.

Technical information

Product type	Cordless Chain Saw
Chain speed (at no load)	0 – 20.0, 24.5, 29.0 m/s
Chain type	95TXL / 22BPX
Chain pitch	0.325″
Chain gauge	1.3 / 1.6 mm (0.05 / 0.063″)
Guide bar length	400, 450, 500 / 500 mm (16, 18, 20 / 20″)
Anti-fall captive nut	Yes
Speed settings	Yes
Chain oil tank volume	260 mL
Chain oil tank material	Resin
Chain oil adjustment mechanism	Yes
Chain oil view window	Yes
Soft grip	Yes
Vibration level	4.1 m/s² (EN62841-4-1, Mode: Cutting wood, 95TXL saw chain, 500 mm sprocket nose guide bar), 3.7 m/s² (EN62841-4-1, Mode: Cutting wood, 22BPX saw chain, 500 mm sprocket nose guide bar)
Uncertainty (K) for Vibration	1.5 m/s² (EN62841-4-1, Mode: Cutting wood, 95TXL saw chain, 500 mm sprocket nose guide bar), 1.5 m/s² (EN62841-4-1, Mode: Cutting wood, 22BPX saw chain, 500 mm sprocket nose guide bar)
Sound pressure level	95 dB (A) (EN62841-4-1, 95TXL saw chain, 500 mm sprocket nose guide bar), 96 dB (A) (EN62841-4-1, 22BPX saw chain, 500 mm sprocket nose guide bar)
Sound power level	103 dB (A) (EN62841-4-1, 95TXL saw chain, 500 mm sprocket nose guide bar), 104 dB (A) (EN62841-4-1, 22BPX saw chain, 500 mm sprocket nose guide bar)
Uncertainty (K) for Noise	3 dB (A) (EN62841-4-1, 95TXL saw chain, 500 mm sprocket nose guide bar), 3 dB (A) (EN62841-4-1, 22BPX saw chain, 500 mm sprocket nose guide bar)
Dimensions (L x W x H)	449 x 232 x 280 mm (17-3/4 x 9-1/8 x 11″)
Dimensions (Attachment)	w/o Guide bar, Saw chain
Dimensions 2 (L x W x H)	885 x 232 x 280 mm (34-3/4 x 9-1/8 x 11″)
Dimensions 2 (Attachment)	450mm guide bar, 95TXL saw chain
Net weight	6.6 – 7.6 / 6.7 – 7.6 / 6.8 – 7.8 kg (14.6 – 16.8 / 14.8 – 16.8 / 15.0 – 17.2 lbs.)
Net weight (Battery)	BL4040F – BL4080F
Net weight (Attachment)	Guide bar, 95TXL saw chain, Chain oil
Net weight (Tool only)	4.5 kg (9.9 lbs.)
Net weight (Tool only) (Attachment)	w/o Guide bar, Saw chain, Chain oil, and Battery (or mixed fuel)

Key features

Chain speed (at no load): 0 – 20.0, 24.5, 29.0 m/s
Chain type: 95TXL / 22BPX
Chain pitch: 0.325″
Chain gauge: 1.3 / 1.6 mm (0.05 / 0.063″)
Guide bar length: 400, 450, 500 / 500 mm (16, 18, 20 / 20″)
